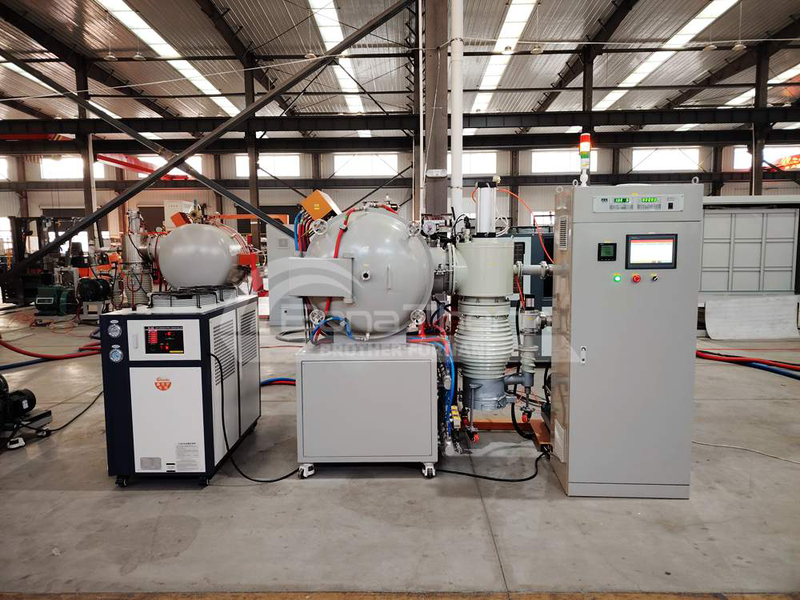

Vacuum Silver Braze Diamond Tool Furnace
- 2025-09-05 01:59
- Brother Furnace
Our vacuum brazing furnace is specifically designed for high-quality silver brazing of diamond tools and superhard materials, providing exceptional thermal performance with a maximum temperature of 1350°C. The furnace ensures highly uniform heating (±5°C) within a vacuum-sealed environment, essential for producing oxidation-free, robust joints in diamond tooling, carbide components, and wear-resistant alloys.
Key features include a molybdenum foil chamber and circularly arranged molybdenum heating belts for consistent radiant heat distribution. The system is equipped with a mechanical and diffusion pump vacuum system, achieving an ultimate vacuum of 7×10⁻³ Pa. Operation is simplified through an intuitive HD touchscreen interface and a PLC-based automatic control system, with optional inert gas quenching for rapid cooling.
Built to meet the stringent requirements of aerospace, energy, and precision manufacturing industries, this furnace is now available from stock and can be shipped globally with short lead times to support urgent production schedules.
Vacuum Silver Braze Diamond Tool Furnace Technical Parameters
| Model | Chamber Size (W*H*D) mm | Max. Temp. (℃) | Power (KW) | Voltage (V) |
|---|---|---|---|---|
| BR-QHS-223 | 200*200*300 | 1350 | 34 | 380 |
| BR-QHS-334 | 300*300*400 | 1350 | 60 | 380 |
| BR-QHS-446 | 400*400*600 | 1350 | 98 | 380 |
| BR-QHS-557 | 500*500*700 | 1350 | 132 | 380 |
| BR-QHS-669 | 600*600*900 | 1350 | 180 | 380 |
* Other sizes can be customized.
