Sintering Furnace with a Temperature range of 1400°C to 1700°C
- 2026-03-06 00:17
- Brother Furnace

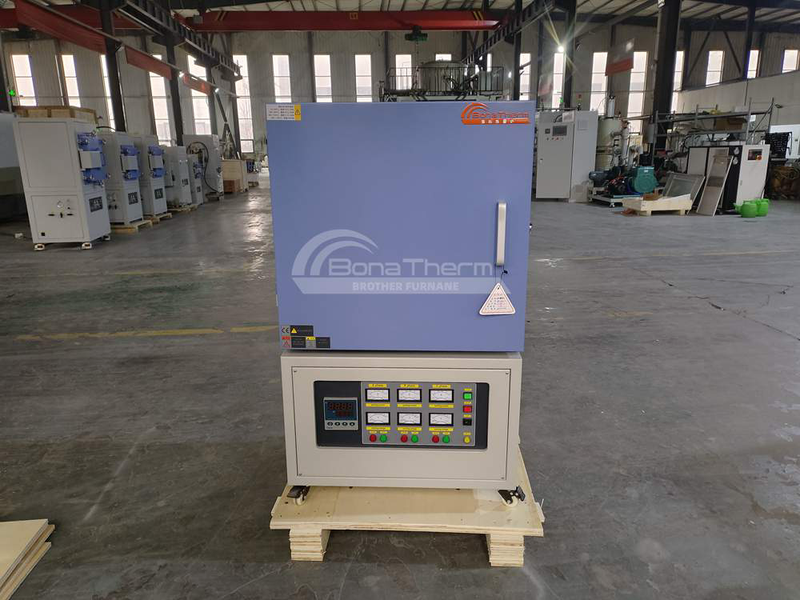

A high-temperature electric resistance sintering furnace with a temperature range of 1400°C to 1700°C is now ready for shipment to a leading university materials science laboratory. The system has been specifically engineered to support advanced research and thermal processing of high-performance ceramics, carbon-based composites, and refractory alloy materials that require stable ultra-high-temperature environments.
Designed for laboratory-scale precision heat treatment, the furnace incorporates high-quality MoSi₂ (molybdenum disilicide) heating elements, enabling reliable operation at temperatures up to 1700°C while maintaining excellent oxidation resistance and long service life. The high-purity ceramic fiber board insulation structure ensures efficient heat retention and uniform temperature distribution throughout the chamber, which is essential for achieving consistent sintering results.
The furnace is equipped with a touchscreen temperature controller with ±1°C control accuracy, allowing precise programming of heating profiles including ramp rates, soaking stages, and controlled cooling cycles. Temperature measurement is performed using a B-type thermocouple (Pt-Rh alloy) protected by a 99.7% purity alumina tube, ensuring accurate and stable readings under extreme thermal conditions.
With a compact chamber size, the furnace is well suited for laboratory experiments, materials characterization, and small-batch sintering processes. Typical applications include ceramic sintering, powder metallurgy processing, high-temperature annealing, and materials development research.
For operational safety and durability, the furnace is integrated with over-temperature protection, a door safety interlock, and reinforced furnace top structure, ensuring stable performance during high-temperature operation.
Upon arrival and installation, this 1400°C–1700°C sintering furnace will provide the research laboratory with a reliable platform for high-temperature materials processing and advanced thermal treatment studies.
Furnace Technical Parameters
Model | Max. Temp (℃) | Working Temp (℃ ) | Chamber Size (W*H"D) mm | Volume (L) | Power | Phase | Themo |
|---|---|---|---|---|---|---|---|
BR-17M-1 | 1700 | 1600 | 100*100*100 | 1 | 1 | 1 | B |
BR-17M-2 | 1700 | 1600 | 120*120*130 | 2 | 3 | 1 | B |
BR-17M-3 | 1700 | 1600 | 150*150*150 | 3 | 4 | 1 | B |
BR-17M-5 | 1700 | 1600 | 150*150*200 | 5 | 5 | 1 | B |
BR-17M-8 | 1700 | 1600 | 200*200*200 | 8 | 7 | 1 | B |
BR-17M-12 | 1700 | 1600 | 200*200*300 | 12 | 8 | 1 | B |
BR-17M-27 | 1700 | 1600 | 300*300*300 | 27 | 10 | 1 | B |
BR-17M-36 | 1700 | 1600 | 300*300*400 | 36 | 12 | 3 | B |
BR-17M-64 | 1700 | 1600 | 400*400*400 | 64 | 20 | 3 | B |
BR-17M-125 | 1700 | 1600 | 500*500*500 | 125 | 30 | 3 | B |
BR-17M-216 | 1700 | 1600 | 600*600*600 | 216 | 45 | 3 | B |
BR-17M-512 | 1700 | 1600 | 800*800*800 | 512 | 80 | 3 | B |
BR-17M-729 | 1700 | 1600 | 900*900*900 | 729 | 96 | 3 | B |
BR-17M-1000 | 1700 | 1600 | 1000*1000*1000 | 1000 | 120 | 3 | B |
* Other size can be customized.
