1200 Degree Vacuum Heat Treatment Furnace With Gas Protection

1200 Degree Vacuum Heat Treatment Furnace With Gas Protection

    • 1200 Degree Vacuum Heat Treatment Furnace With Gas Protection
  • 1200 Degree Vacuum Heat Treatment Furnace With Gas Protection

    Product Details:

    Place of Origin: China
    Brand Name: Brother Furnace
    Certification: CE
    Model Number: BR-12HVF/17HVF / XD-12HVF/17HVF

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiation
    Packaging Details: Strong wooden box for global shipping
    Delivery Time: 7-30 Working days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 200 Sets per month
    Contact Now
    Detailed Product Description
    VACUUM: 0.007Pa MAX. TEMPERATURE: 1200℃
    CAPACITY: 1 ~ 324 L INERT GAS: Designed With Air Inlet And Exhaust Port, It Can Be Used For Vacuum Pumping Or Filling With Inert Gas
    VACUUM VALVE: Pneumatic Vacuum Valve, Easy To Operate VACUUM LEAKAGE RATE: Helium Mass Spectrometer Leak Detector Vacuum Pickup, Ensure The Vacuum Leakage Rate Is Lower Than 0.67Pa/h.
    CHAMBER: Alumina Ceramic Fiber HEATING ELEMENT: Resistance Wire
    COOLING: Double Water-cooling, Furnace Shell Surface Temperature 50 ℃ Or Less ALARM: Upper Limit Alarm, Deviation Alarm, Automatic Stop At The End Of Program Operation, No Man On Duty
    CONTROL: 50 Programmable Temperature Meter PID Adjustment MAX. HEATING RATE: 20°C /min
    TEMPERATURE ACCURACY: ±1℃ TEMPERATURE UNIFORMITY: ±5℃
    Application: Vacuum Heat Treatment
    High Light:

    1200 Degree Vacuum Heat Treatment Furnace

    ,

    324L Vacuum Heat Treatment Furnace

    ,

    Annealing Vacuum Heat Treatment Furnace

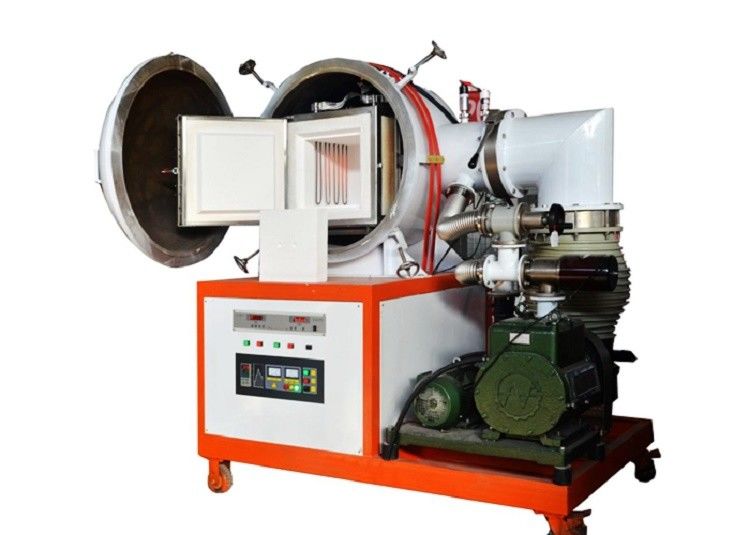

    High Temperature 1200 degree Vacuum Heat Treatment Furnace with Gas Protection

    This High Temperature 1200 degree Vacuum Heat Treatment Furnace with Gas Protection is a very cost-effective vacuum furnace. Low price, simple operation, excellent vacuum effect, good temperature field uniformity. It is used for high temperature vacuum sintering, annealing, tempering and aging treatment of ceramic materials, ceramic metal composites, refractory metals, and alloy materials, as well as vacuum brazing of alloy tools and superhard materials.





    • Vacuum up to 7* 10^(-3)pa (two-stage rotary vane vacuum pump+roots pump+diffusion pump unit)
    • The highest temperature 1700 ℃.
    • Designed with air inlet and exhaust port, it can be used for vacuum pumping or filling with inert gas.
    • Pneumatic vacuum valve, easy to operate.
    • Helium mass spectrometry leak detector vacuum pickup, ensure the vacuum leakage rate is lower than0.67Pa/h.
    • Use alumina ceramic fiber furnace and resistance wire or silicon molybdenum rod heating. At the same time, the cost of the electric furnace is greatly reduced.
    • Double water-cooling, furnace shell surface temperature 50 ℃ or less.
    • High strength carbon steel, external electrostatic spray, beautiful and generous.
    • 50 programmable temperature meter PID adjustment.
    • Upper limit alarm, deviation alarm, automatic stop at the end of the program operation, no man on duty.


    Standard Parts:

    • High-temperature gloves
    • Crucible clip
    • Operation Manual





    Optional Parts:

    • Independent control cabinet
    • PLC automatic control system
    • Rapid furnace cooling system







    High Temperature Vacuum Heat Treatment Furnace Technical parameter:1200Type

    Model Max Temp. Chamber size
    (WxHxD)
    Heating element

    Capacity

    (L)

    Power

    (KW)

    Vacuum
    BR-12HVF-1 1200 100*100*100 Resistance wire 1 1.2 7*10-3Pa
    BR-12HVF-5 1200 150*150*200 Resistance wire 4.5 3.5 7*10-3Pa
    BR-12HVF-12 1200 200*200*300 Resistance wire 12 5 7*10-3Pa
    BR-12HVF-36 1200 300*300*400 Resistance wire 36 12 7*10-3Pa
    BR-12HVF-64 1200 400*400*500 Resistance wire 80 18 7*10-3Pa
    BR-12HVF-125 1200 500*500*700 Resistance wire 175 30 7*10-3Pa
    BR-12HVF-216 1200 600*600*900 Resistance wire 324 50 7*10-3Pa
































    Why Brother's 0.007Pa Vacuum Heat Treatment Furnace Up to 1200℃?

    Manufacturer with 10+ years' experience

    • Best quality
    • Customized design
    • Experienced workers
    • Big factory


    Customers from more than 30 countries choose us

    • Satisfied customers offer proof of our commitment to excellent design, quality and cost efficiency.


    Best service, Fast response

    • Free design for special furnace
    • Free technical support for the lifetime
    • Free sample test

    1200 Degree Vacuum Heat Treatment Furnace With Gas Protection 0

    If you're interested in our High Temperature 1200 degree Vacuum Heat Treatment Furnace with Gas Protection, contact us now to get a quote.
