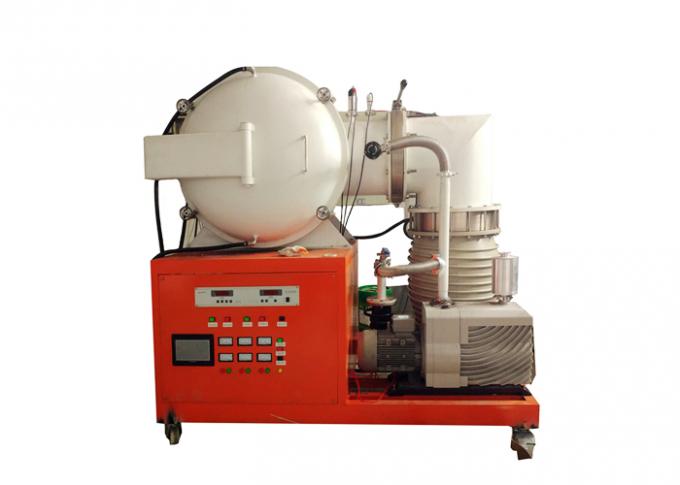

High Temperature Vacuum Annealing Furnace , 1 - 324 L Industrial Vacuum Furnace

High Temperature Vacuum Annealing Furnace , 1 - 324 L Industrial Vacuum Furnace

High Temperature Vacuum Annealing Furnace , 1 - 324 L Industrial Vacuum Furnace

Product Details:

Place of Origin: China
Brand Name: Brother Furnace
Certification: CE
Model Number: BR-12HVF/17HVF / XD-12HVF/17HVF

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Strong wooden box for global shipping
Delivery Time: 7-30 Working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 Sets per month
Contact Now
Detailed Product Description
VACUUM: 0.007Pa MAX. TEMPERATURE: 1700℃
CAPACITY: 1 ~ 324 L INERT GAS: Designed With Air Inlet And Exhaust Port, It Can Be Used For Vacuum Pumping Or Filling With Inert Gas
VACUUM VALVE: Pneumatic Vacuum Valve, Easy To Operate VACUUM LEAKAGE RATE: Helium Mass Spectrometer Leak Detector Vacuum Pickup, Ensure The Vacuum Leakage Rate Is Lower Than 0.67Pa/h.
CHAMBER: Alumina Ceramic Fiber HEATING ELEMENT: Resistance Wire Or MoSi2 Heating Element
COOLING: Double Water-cooling, Furnace Shell Surface Temperature 50 ℃ Or Less ALARM: Upper Limit Alarm, Deviation Alarm, Automatic Stop At The End Of Program Operation, No Man On Duty
CONTROL: 50 Programmable Temperature Meter PID Adjustment MAX. HEATING RATE: 20°C /min
TEMPERATURE ACCURACY: ±1℃ TEMPERATURE UNIFORMITY: ±5℃
Application: Vacuum Annealing

High Temperature Vacuum Annealing Furnace, 0.007Pa Vacuum Annealing Box Furnace Up to 1700℃







This High Temperature Vacuum Annealing Furnace, 0.007Pa Vacuum Annealing Box Furnace Up to 1700℃ is a very cost-effective vacuum furnace. Low price, simple operation, excellent vacuum effect, good temperature field uniformity. It is used for high temperature vacuum sintering, annealing, tempering and aging treatment of ceramic materials, ceramic metal composites, refractory metals, and alloy materials, as well as vacuum brazing of alloy tools and superhard materials.

High Temperature Vacuum Annealing Furnace , 1 - 324 L Industrial Vacuum Furnace

  • Vacuum up to 7* 10^(-3)pa (two-stage rotary vane vacuum pump+roots pump+diffusion pump unit)
  • The highest temperature 1700 ℃.
  • Designed with air inlet and exhaust port, it can be used for vacuum pumping or filling with inert gas.
  • Pneumatic vacuum valve, easy to operate.
  • Helium mass spectrometry leak detector vacuum pickup, ensure the vacuum leakage rate is lower than0.67Pa/h.
  • Use alumina ceramic fiber furnace and resistance wire or silicon molybdenum rod heating. At the same time, the cost of the electric furnace is greatly reduced.
  • Double water-cooling, furnace shell surface temperature 50 ℃ or less.
  • High strength carbon steel, external electrostatic spray, beautiful and generous.
  • 50 programmable temperature meter PID adjustment.
  • Upper limit alarm, deviation alarm, automatic stop at the end of the program operation, no man on duty.


Standard Parts:

  • High-temperature gloves
  • Crucible clip
  • Operation Manual





Optional Parts:

  • Independent control cabinet
  • PLC automatic control system
  • Rapid furnace cooling system







High Temperature Vacuum Annealing Furnace Technical parameter:1200Type

Model Max Temp. Chamber size
(WxHxD)
Heating element

Capacity

(L)

Power

(KW)

Vacuum
BR-12HVF-1 1200 100*100*100 Resistance wire 1 1.2 7*10-3Pa
BR-12HVF-5 1200 150*150*200 Resistance wire 4.5 3.5 7*10-3Pa
BR-12HVF-12 1200 200*200*300 Resistance wire 12 5 7*10-3Pa
BR-12HVF-36 1200 300*300*400 Resistance wire 36 12 7*10-3Pa
BR-12HVF-64 1200 400*400*500 Resistance wire 80 18 7*10-3Pa
BR-12HVF-125 1200 500*500*700 Resistance wire 175 30 7*10-3Pa
BR-12HVF-216 1200 600*600*900 Resistance wire 324 50 7*10-3Pa


























High Temperature Vacuum Annealing Furnace Technical parameter:1700Type

Model Max Temp. Chamber size
(WxHxD)
Heating element

Capacity

(L)

Power

(KW)

Vacuum
BR-17HVF-1 1700 100*100*100 MoSi2 heater 1 1.5 7*10-3Pa
BR-17HVF-5 1700 150*150*200 MoSi2 heater 4.5 5 7*10-3Pa
BR-17HVF-12 1700 200*200*300 MoSi2 heater 12 8 7*10-3Pa
BR-17HVF-36 1700 300*300*400 MoSi2 heater 36 12 7*10-3Pa
BR-17HVF-64 1700 400*400*500 MoSi2 heater 80 30 7*10-3Pa
BR-17HVF-125 1700 500*500*700 MoSi2 heater 175 45 7*10-3Pa
BR-17HVF-216 1700 600*600*900 MoSi2 heater 324 66 7*10-3Pa




























Why Brother's 0.007Pa Vacuum Annealing Box Furnace Up to 1700℃?

Manufacturer with 10+ years' experience

  • Best quality
  • Customized design
  • Experienced workers
  • Big factory


Customers from more than 30 countries choose us

  • Satisfied customers offer proof of our commitment to excellent design, quality and cost efficiency.


Best service, Fast response

  • Free design for special furnace
  • Free technical support for the lifetime
  • Free sample test



If you're interested in our High Temperature Vacuum Annealing Furnace, 0.007Pa Vacuum Annealing Box Furnace Up to 1700℃, contact us now to get a quote.
