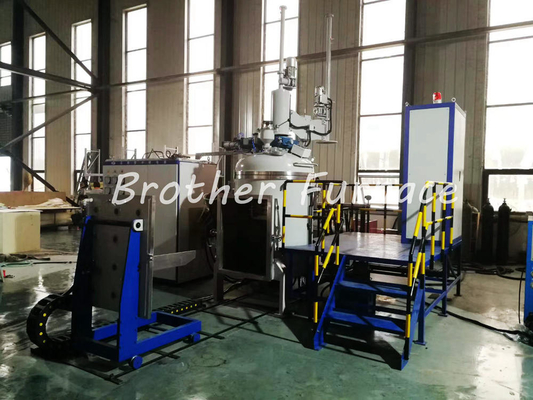

Refractory Vacuum Induction Skull Melting Furnaces For Melting Casting

Refractory Vacuum Induction Skull Melting Furnaces For Melting Casting

  • Refractory Vacuum Induction Skull Melting Furnaces For Melting Casting
  • Refractory Vacuum Induction Skull Melting Furnaces For Melting Casting
Refractory Vacuum Induction Skull Melting Furnaces For Melting Casting
Product Details:
Place of Origin: China
Brand Name: Brother Furnace
Certification: CE
Model Number: BR-RLL
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Strong wooden box for global shipping
Delivery Time: 30-50 Working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 Sets per month
Contact Now
Detailed Product Description
Max Vacuum: 0.006 Pa MAX. TEMPERATURE: 1700℃
Capacity: 100 Kgs Frequency: 1500 ~ 4000HZ
Heating Element: Copper Tube Induction Heater Observation Window: Yes
Feeder: Alloy Feeder TEMPERATURE CONTROL: PLC
Furnace Type: Vacuum Induction Skull Melting Furnaces
Highlight:

Vacuum Induction Skull Melting Furnaces

,

Melting Casting Vacuum Induction Furnaces

,

Refractory Vacuum Induction Furnaces

Vacuum Induction Skull Melting Furnaces for melting & casting of refractory

Brother's Induction Skull Melting Furnaces for melting & casting of refractory adopts the theory of medium frequency induction heating and builds a high vacuum system so that the metal could be melted under a high vacuum situation. This furnace is widely used in many kinds of research and production, such as nickel and special steel, precision alloy, activity metal, high-temperature alloy, magnet material, etc. Also suitable for the vacuum precision cast of small parts.



  • Adopt IGBT medium frequency power supply, the max temperature is 1700℃.
  • The vacuum system is composed by mechanical pump,roots pump,diffusion pump, the max vacuum level is 6x10^(-3)Pa.
  • The alloy feeder built inside. The material can be fed into melting crucible by operating the feeder handle.
  • The furnace cover is equipped with an observation window, easy to observe the performance of the furnace.
  • Induction heater consists of a rectangular copper tube, through the two mating nuts fixed on the electrode, easy to disassemble.
  • The crucible could be placed inside the inductor. The crucible material should be following the melt alloy type.


Refractory Vacuum Induction Skull Melting Furnaces For Melting Casting 0



Refractory Vacuum Induction Skull Melting Furnaces For Melting Casting 1

Technical Specifications of Vacuum Induction Skull Melting Furnaces:

Technical Specifications

Crucible effective volume 4L
Crucible effective capacity (Steel) 20kgs
Max temperature 1700 ℃
Max melting vacuum ● 7×10-3Pa
● Vacuum time: open diffusion pump when preheating is complete, then up to 7×10-3Pa in 30 minutes.
Rated power 60KW
Rated voltage 375V
Power frequency 50HZ
Rated frequency 1500~2500HZ
Heat element Induction copper coil
Vacuum system ● 70L/s Double stage Rotary vane mechanical pump
● Dia.300mm diffusion pump, Max. pumping speed: 5000L/s
● Dia.300mm diffusion pump clod trap, effective cooling cycle for pump oil
● Dia.300mm diffusion pump flapper valve + Dia.80mm former pump flapper valve
● Stainless pipe + stainless bellows

Vacuum Induction Skull Melting Furnace Structure

Vacuum Induction Melting Furnace -2
Vacuum furnace shell ● Double layer water-cooling arched furnace cover. Equipped with two tension springs, used to balance the weight. You can open the cover easily. When it’s locking, two tension springs can also provide furnace cover airtight pressure to ensure good sealing.
Electrode ● Electrodes mounted on Sealed bearing, when needed tilting crucible, worker can operate the handle to pour the liquid steel.
Alloy feeder ● Alloy feeder is located in the center of the cover. Inside the feeder is divided into six cubicles (material of one cubicle is placed in the tipping bucket), the material can be fed into the crucible in the vacuum or protective gas.

● When turning the feeder hand wheel every 60 degrees, there is one cubicle material fall into the tipping bucket inside the furnace cover.

● Feeding tipping bucket is equipped with damping plate to prevent materials falls too quickly. When in use, gently shake the joystick (outside the furnace cover), you can control the speed and quantity of the material fall into the crucible

Refractory Vacuum Induction Skull Melting Furnaces For Melting Casting 4 ● The furnace cover is equipped with an observation window, easy to observe the performance of the furnace.

● Active shutter is installed on the observation window, preventing glass from burning broken and getting dirty by steam accumulation of metal.

● Shutter moves away shortly only when observing, controlled by the handle outside the furnace cover.

Induction heater ● Induction heater consists of a rectangular copper tube, through the two mating nut fixed on the electrode, easy to disassemble.

● Pre-sintering moulding crucible can be placed inside.
You can also make the crucible according to the inductor inner wall. The material of crucible is up to the melting metal.

● In front of the sensor, at the bottom of the furnace shell (where place the ingot mould), there is a circular pipe. On the pipe, there is a circular shelf to place ingot mould. Normally, ingot mould is placed on this shelf. When you need to cast the slender ingot, the ingot mould will be high, you can remove the shelf and put the ingot mould into the circular pipe, place it on the water-cooling cover. If you have some special needs, you can replace the water-cooling cover into a suitable water-cooling ingot mould room.

Temperature measuring On right side of the furnace exhaust pipe fitted with a temperature measuring device. When you need to measure temperature, just pull up the spring latch, turn the handle, the thermocouple tip will insert in the liquid metal. Quartz protecting tube for thermocouple prepared by the user.
Medium frequency power supply and Water-cooling ● The medium frequency current of furnace was sent to inductor through the outside bus-tie and water-cooled medium frequency cable. Cooling water of medium frequency cable was directed by control valve on the furnace base.
Vacuum system ● The vacuum system has a 0-0.1Mpa pressure gauge, to check the rough vacuum and negative pressure of protective atmosphere.

Melting process

Step 1. Feeding ● The materials must be carefully cleaned, removed surface contamination, oil, etc. and baked to remove moisture.

● Some complex recycling materials must be cut off and removed surface scale, non-metallic materials, etc.

● When feeding, you need to make sure the materials at the top of crucible is looser than the bottom. Use small piece of material to fill the gap. Place more regular shape material at the top to avoid scaffold bridging during the melting. In the direction of tapping hole can amass some granular materials.

● Feeding movements should be light to avoid crucible damage and slags in the metallic liquid.

Step 2. Vacuum pumping When the vacuum of 2-stage rotary pump is 15Pa and diffusion pump have been heated for about 50 minutes, now you can close 2-stage rotary pump valve, open diffusion pump valve, vacuum the furnace to the required high vacuum.
Step 3. Melting ● The max power of furnace is subject to the medium frequency voltage and max current.
Step 4. Refining ● It’s easy to cause sputtering when some alloy drop into the crucible. You need to pay attention to the speed of alloy’s adding. It can’t be too fast. Sometimes, you need to lower the power, make the liquid surface a bit harder, then adding the alloy to reduce sputtering.
Step 5. Casting When refining complete, no need to cut off the power, tilt crucible to pour metallic liquid into ingot mould. Notice, do not pour it out of the ingot mould.

Maintenance

Cooling water ● When stop using the furnace for a while, you need to use compressed air to blow out the remained water to prevent corrosion and extent service life.
Vacuum system ● Replace the oil of diffusion pump and 2-stage rotary pump regularly. Add diffusion pump oil as lubricating oil to the seal parts regularly.

● Pay attention to the heater of diffusion pump regularly. You can check if the heating wire is broken by measuring current.

● When vacuuming steam-containing gas, you should open the gas ballast valve on the 2 stage rotary pump, or it will contaminate the oil in 2 stage rotary pump and lower the max vacuum.

Furnace ● When stop using the furnace, you should clean the furnace inside and outside and vacuum it.







Vacuum Induction Skull Melting Furnace model:

Model Capacity Max.temp Frequency Voltage Power Ultimate vacuum Cooling water
BR-RLL-10 10kgs 1700℃ 4000HZ 220V 35KW 6x10-3Pa 1.5m3/H
BR-RLL-25 25kgs 1700℃ 2500HZ 250V 50KW 6x10-3Pa 2.5m3/H
BR-RLL-50 50kgs 1700℃ 2500HZ 300V 100KW 6x10-3Pa 10m3/H
BR-RLL-100 100kgs 1700℃ 2000HZ 300V 160W 6x10-3Pa 10m3/H
BR-RLL-150 150kgs 1700℃ 2000HZ 320V 175KW 6x10-3Pa 10m3/H
BR-RLL-200 200kgs 1700℃ 1500HZ 350V 200KW 6x10-3Pa 10m3/H
