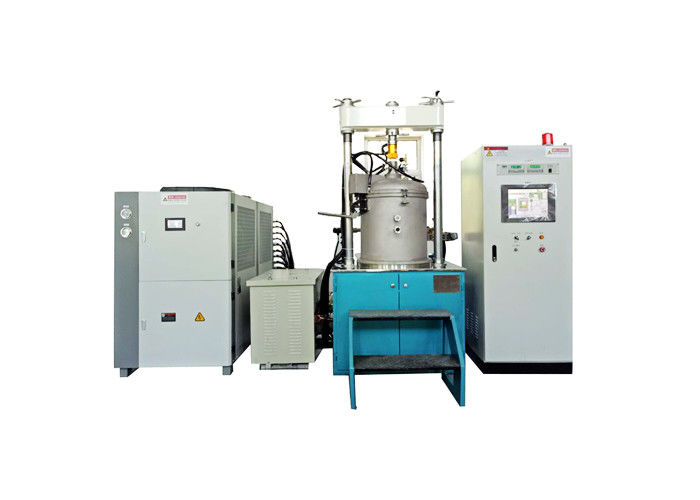

High Temp Vacuum Hot Pressing Furnace With PLC Auto Control Stable Performance

High Temp Vacuum Hot Pressing Furnace With PLC Auto Control Stable Performance

    • High Temp Vacuum Hot Pressing Furnace With PLC Auto Control Stable Performance
  • High Temp Vacuum Hot Pressing Furnace With PLC Auto Control Stable Performance

    Product Details:

    Place of Origin: China
    Brand Name: Brother Furnace
    Certification: CE
    Model Number: BR-RYL

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiation
    Packaging Details: Strong wooden box for global shipping
    Delivery Time: 30-50 Working days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 200 Sets per month
    Contact Now
    Detailed Product Description
    MAX. VACUUM: 0.006 Pa MAX. TEMPERATURE: 1200℃ / 2000℃
    Max. Chamber Size: 300x300mm (Dia X H) Accuracy: 0.02mm
    Max. Displacement: 200mm Heating Element: Resistance Wire (<1200℃); Graphite Heater (>2000℃)
    Control: PLC MAX. HEATING RATE: 20°C /min
    TEMPERATURE ACCURACY: ±1℃ TEMPERATURE UNIFORMITY: ±5℃
    High Light:

    vacuum annealing furnace

    ,

    vacuum heat treatment furnace

    High Temp. Vacuum Hot Pressing Furnace with PLC Auto Control



    The vacuum hot press furnace mainly used for the high temperature sintering and hot press treatment, such as inorganic material, hard alloy, function ceramic, metallurgy powder. The material density could be increased under a vacuum condition or protective atmosphere.



    • The heating element could be selected according to the difference of hot press temperature and vacuum level. The resistance module is suitable below 1200℃ and the graphite heater is suitable over 1200℃.
    • The press range is adjustable below 5 tons so that it’s can be used for sample sintering and hot press testing to avoid resource waste.
    • Ranging by a grating ruler with high accuracy to 0.02mm.
    • All the action could be controlled by a PLC system, including temperature control, press adjustment, temperature auto tracking. All the furnace running monitoring and data could be displayed and record on the touch screen, such as temperature, vacuum level, displacement. The data curve could check in real time.
    • W-Re thermocouple at low temperature and infrared thermocouple for high temperature. The W-Re thermocouple will be auto quit at high temperature.





    High Temp. Vacuum Hot Pressing Furnace Technical Parameter:

    Model Working size Max. temp Press Displacement Power Ultimate vacuum
    BR-RYL-10 Ф160x160 2000℃ 20T 100mm 25KW 6x10-3Pa
    BR-RYL-20 Ф200x200 2000℃ 20T 150mm 60KW 6x10-3Pa
    BR-RYL-30 Ф300x300 2000℃ 20T 200mm 120KW 6x10-3Pa
    BR-RYLA-10 Ф160x160 1100℃ 20T 100mm 8KW 6x10-3Pa
    BR-RYLA-20 Ф200x200 1100℃ 20T 150mm 12KW 6x10-3Pa
    BR-RYLA-30 Ф300x300 1100℃ 20T 200mm 20KW 6x10-3Pa














    Why Us?

    Manufacturer with 10+ years' experience

    • Best quality
    • Customized design
    • Experienced workers
    • Big factory


    Customers from more than 30 countries choose us

    • Satisfied customers offer proof of our commitment to excellent design, quality and cost efficiency.


    Best service, Fast response

    • Free design for special furnace
    • Free technical support for the lifetime
    • Free sample test



    If you're interested in our High Temp. Vacuum Hot Pressing Furnace with PLC Auto Control, contact us now to get a quote!
