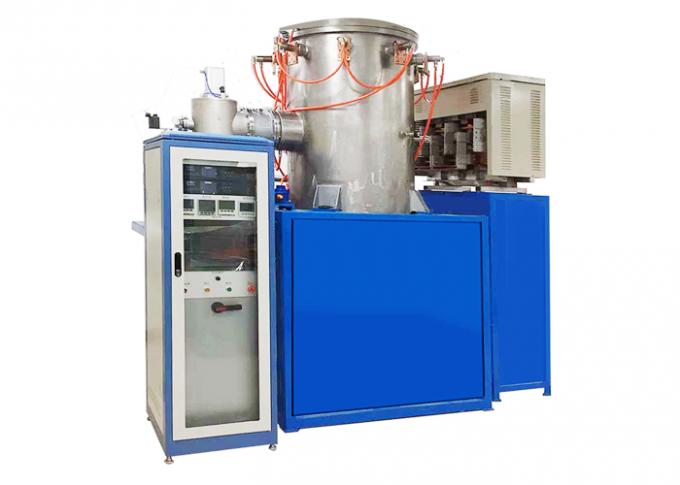

Tungsten Coil High Temperature Vacuum Furnace 50 Segments Programmable

Tungsten Coil High Temperature Vacuum Furnace 50 Segments Programmable

    • Tungsten Coil High Temperature Vacuum Furnace 50 Segments Programmable
    • Tungsten Coil High Temperature Vacuum Furnace 50 Segments Programmable
  • Tungsten Coil High Temperature Vacuum Furnace 50 Segments Programmable

    Product Details:

    Place of Origin: China
    Brand Name: Brother Furnace
    Certification: CE
    Model Number: BR-WSL

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiation
    Packaging Details: Strong wooden box for global shipping
    Delivery Time: 30-50 Working days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 200 Sets per month
    Contact Now
    Detailed Product Description
    Max. Vacuum: 0.00006 Pa MAX. TEMPERATURE: 2200℃
    Chamber Size: Φ400×600 Max. FURNACE CHAMBER: Tungsten Foil
    Heating Element: Tungsten Coil Net Temperature CONTROL: 50 Segments Programmable And PID Auto Control
    MAX. HEATING RATE: 20°C /min TEMPERATURE ACCURACY: ±1℃
    TEMPERATURE UNIFORMITY: ±5℃

    Vacuum Tungsten Coil Furnace



    High Temperature Vacuum Tungsten Coil Furnace Up to 2200℃



    Vacuum tungsten coil furnace adopts tungsten coil net as heating elements, pollution-free, mainly used for the heat treatment of ceramic, sapphire glass, zirconia in a vacuum environment. Also used for universities and research centers for mass production.



    • Specially designed tungsten net heating and tungsten foil as the thermal insulation scre, the max. temperature can be 2200℃
    • Vacuum system can choose turbo pump, the ultimate vacuum can be 6x10^(-5)Pa.
    • Can inlet N2, Ar, H2, N2, and H2 mixed gas, etc.

    Tungsten Coil High Temperature Vacuum Furnace 50 Segments Programmable

    Technical Parameter:

    Model

    Heating Zone

    (Dia * Height)

    Temperature Temp. Uniformity Power Vacuum
    BR-WSL-1010 ф100x 100mm 1900℃ ±3℃ 21KW 6x10-5Pa
    BR-WSL-2030 ф200x300mm 1900℃ ±3℃ 68KW 6x10-5Pa
    BR-WSL-3050 ф300x500mm 1900℃ ±3℃ 120KW 6x10-5Pa
    BR-WSL-4060 ф400x600mm 1900℃ ±3℃ 160KW 6x10-5Pa
