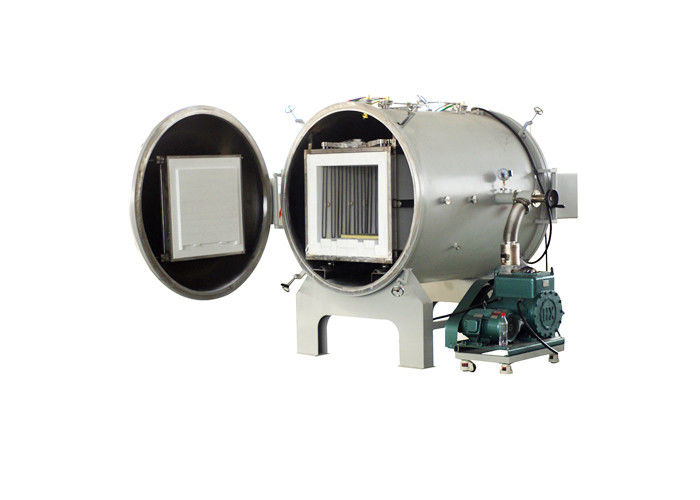

Non Pressure Horizontal Vacuum Furnace , Electric Heat Treatment Furnace For Si3N4 Powder

Non Pressure Horizontal Vacuum Furnace , Electric Heat Treatment Furnace For Si3N4 Powder

Non Pressure Horizontal Vacuum Furnace , Electric Heat Treatment Furnace For Si3N4 Powder

Product Details:

Place of Origin: China
Brand Name: Brother Furnace
Certification: CE
Model Number: BR-WYA

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Strong wooden box for global shipping
Delivery Time: 7-30 Working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 Sets per month
Contact Now
Detailed Product Description
VACUUM: 10 Pa MAX. TEMPERATURE: 1600℃
CAPACITY: 192L ~ 576L Heating Element: MoSi2 Heating Element
Multi-zone Temperature Control: Yes Special Gas Circuit: Yes
CHAMBER: Ceramic Fiber Temperature CONTROL: 50 Programmable Temperature Meter PID Adjustment
MAX. HEATING RATE: 20°C /min TEMPERATURE ACCURACY: ±1℃
TEMPERATURE UNIFORMITY: ±5℃

Non-pressure Furnace

High Temperature Non-pressure Furnace, 1600℃ 10pa Vacuum Furnace for Si3N4 Powder





Non-pressure atmosphere furnace is equipped with Vacuum System, when the air in the chamber pumped out, inlet high purity N2 into the chamber, and sintering under the N2 protective environment. When used for the production of high purity Si3N4 powder, the N2 and Si powder can fully react, the flour extraction rate can reach 92%.


Non Pressure Horizontal Vacuum Furnace , Electric Heat Treatment Furnace For Si3N4 Powder

  • Ceramic Fiber Chamber, Mosi2 heating element, max. temperature can be 1600℃
  • Can realize multi-zone temperature control as per heating zone length, make sure the temperature uniformity of the working chamber.
  • Chamber bottom adopts high strength alumina brick, with loading car rail, can easily load sintering material.
  • Double-pole rotary mechanical pump, the vacuum can be 10Pa.
  • Special gas circuit design, High purity N2 inlet into the chamber through the gas circuit after deoxidation and dewatering treatment, exhaust at the release port of chamber, thus ensure N2 can circuit effectively.
  • Sliding furnace tank design, can maintenance conveniently.



Optional Spares:

  • Si3N4 loading box
  • Si3N4 protection board





Technical Parameter:

Model Heating Zone (3 zone) Temperature Power Voltage
BR-WYA-4412 400*400*1200mm 1600℃ 60KW 380V
BR-WYA-6616 600*600*1600mm 1600℃ 105KW 380V
