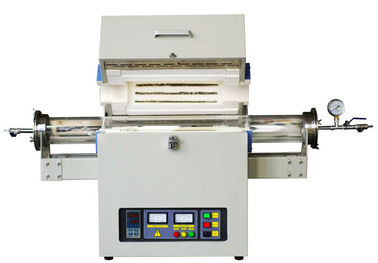

1200 ℃ / 1400 ℃ / 1600 ℃ Lab Tube Furnace High Performance - 0.1MPa Pressure

1200 ℃ / 1400 ℃ / 1600 ℃ Lab Tube Furnace High Performance - 0.1MPa Pressure

    • 1200 ℃ / 1400 ℃ / 1600 ℃ Lab Tube Furnace High Performance - 0.1MPa Pressure
    • 1200 ℃ / 1400 ℃ / 1600 ℃ Lab Tube Furnace High Performance - 0.1MPa Pressure
    • 1200 ℃ / 1400 ℃ / 1600 ℃ Lab Tube Furnace High Performance - 0.1MPa Pressure
    • 1200 ℃ / 1400 ℃ / 1600 ℃ Lab Tube Furnace High Performance - 0.1MPa Pressure
  • 1200 ℃ / 1400 ℃ / 1600 ℃ Lab Tube Furnace High Performance - 0.1MPa Pressure

    Product Details:

    Place of Origin: China
    Brand Name: Brother Furnace
    Certification: CE
    Model Number: BR-NT/ST/MT / XD-NT/ST/MT

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiation
    Packaging Details: Strong wooden box for global shipping
    Delivery Time: 7-21 Working days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 200 Sets per month
    Contact Now
    Detailed Product Description
    Max Temperature: 1200℃ / 1400℃ / 1600℃ Normal Vacuum: -0.1MPa
    Max Vacuum: Configuration Molecular Pump, Vacuum 7x10-4 Pa (Optional) Flange: 304 Stainless Steel Sealing Flange
    Over-temperature Protection: Automatic Power-off When The Temperature Exceeds The Allowable Set Value Safety Protection: Automatically Power Off When The Furnace Body Leaks
    Furnace Structure: Double Layer Steel Dual Cooling Fan, Surface Temperature Below 50℃ Max Heating Rate: 20°C /min
    TEMPERATURE ACCURACY: ±1℃ TEMPERATURE UNIFORMITY: ±5℃
    Temperature Control: 50 Segments Programmable And Auto Control

    Vacuum Tube Furnace







    Brother vacuum tube furnace adopts high pure alumina or quartz tube, working temperature from 300℃ to 1600℃. Adopt advanced temperature control system, high temperature accuracy, easy operation, excellent heat-insulation effect, symmetrical temperature uniformity. Mainly used for labs of the university, research center, and production enterprise, etc.



    • Max temperature:
      1200℃ (HRE Fe-Cr-Al-Mo wire)
      1400℃ (SiC Heater)
      1600℃ (MoSi2 Heater)

    • 50 segments programmable and auto control
    • Furnace structure, double layer steel dual cooling fan, the surface temperature below 50℃
    • 304 stainless steel sealing flange
    • Adjustable flange support structure at both ends to extend furnace tube life
    • Over-temperature protection function, automatic power-off when the temperature exceeds the allowable set value
    • Safety protection Automatically power off when the furnace body leaks
    • Heating rate ≦20℃/min
    • Temperature accuracy ±1 ℃
    • Max vacuum -0.1MPa
    • Configuration molecular pump, Vacuum 7x10^(-4)Pa

    1200 ℃ / 1400 ℃ / 1600 ℃ Lab Tube Furnace High Performance - 0.1MPa Pressure





    Standard Spares:

    • Plugging tube 4 pcs
    • Furnace tube 1 pc
    • Vacuum pump 1 pc
    • Vacuum sealing flange 2 sets
    • Vacuum gauge 1 pc



    Optional Spares:

    • Vacuum system (Rotary vane vacuum pump, Diffusion pump, Molecular pump)
    • Atmosphere system (Float flow meter, Mass flow meter)
    • Quick release flange, Three-way flange
    • 7 inch HD touch scree



    Vacuum Tube Furnace Video









    Standard specification:

    Model Dia*Heating zone Power Max working temperature Thermocouple Furnace tube material Heating elements
    BR-12NT-40/300 40x300mm 3 KW 1200℃ K type Quartz tube Fe-Cr-Al-Mo wire
    BR-12NT-60/300 60x300mm 3 KW
    BR-12NT-80/300 80x300mm 5 KW
    BR-12NT-100/300 100x300mm 5 KW
    BR-12NT-120/300 120x300mm 6 KW
    BR-12NT-40/450 40x450mm 3 KW
    BR-12NT-60/450 60x450mm 3 KW
    BR-12NT-80/450 80x450mm 5 KW
    BR-12NT-100/450 100x450mm 5 KW
    BR-12NT-120/450 120x450mm 6 KW




    Model

    Dia*Heating zone Power Max working temperature Thermocouple Furnace tube material Heating elements
    BR-14ST-40/300 40x300mm 4 KW 1400℃ S type Alumina tube Sic Heater
    BR-14ST-60/300 60x300mm 4 KW
    BR-14ST-80/300 80x300mm 4 KW
    BR-14ST-100/300 100x300mm 6 KW
    BR-14ST-120/300 120x300mm 6 KW
    BR-14ST-40/450 40x450mm 4 KW
    BR-14ST-60/450 60x450mm 4 KW
    BR-14ST-80/450 80x450mm 4 KW
    BR-14ST-100/450 100x450mm 6 KW
    BR-14ST-120/450 120x450mm 6 KW




    Model

    Dia* Heating

    zone

    Power Max working temperature Thermocouple Furnace tube material Heating elements
    BR-16MT-40/300 40x300mm 4 KW 1600℃ B type Alumina tube MoSi2 Heater
    BR-16MT-60/300 60x300mm 4 KW
    BR-16MT-80/300 80x300mm 4 KW
    BR-16MT-100/300 100x300mm 6 KW
    BR-16MT-120/300 120x300mm 6 KW
    BR-16MT-40/450 40x450mm 5 KW
    BR-16MT-60/450 60x450mm 5 KW
    BR-16MT-80/450 80x450mm 5 KW
    BR-16MT-100/450 100x450mm 7 KW
    BR-16MT-120/450 120x450mm 7 KW
