Rotary Split Tube Furnace up to 1200℃
- 2025-09-26 00:03
- Brother Furnace

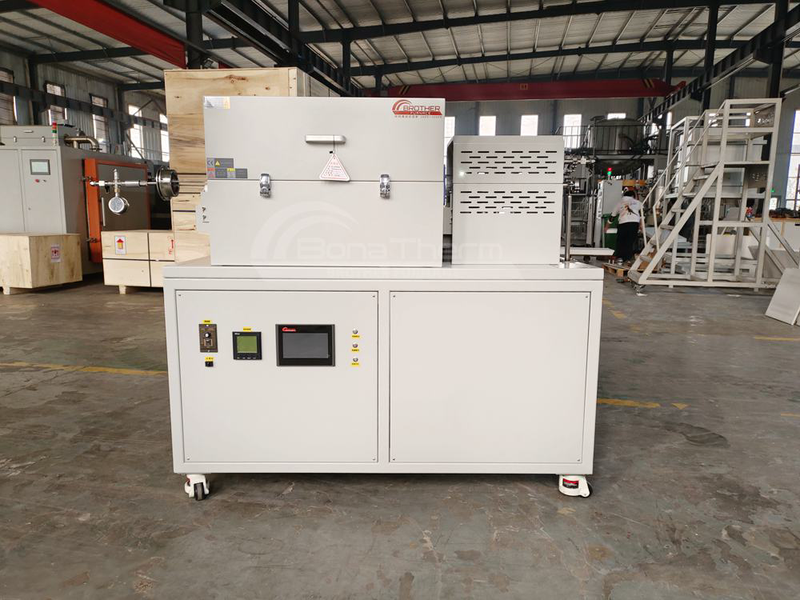

We are pleased to announce the shipment of the BR-12NRT Rotary Split Tube Furnace. This advanced furnace is engineered for high-temperature calcination processes requiring exceptional uniformity, making it ideal for laboratory-scale production of advanced materials such as Li-ion battery cathodes (e.g., LiFePO₃, LiMnNiO₃).
Key features include a maximum operating temperature of 1200°C, a variable tube rotation speed (3-7 RPM) with internal quartz lifters for optimal material agitation, and a programmable 50-segment PID controller for precise thermal profiles. The system also ensures operator safety and process integrity with a double-shell air-cooled design, over-temperature protection, and a high-vacuum capability down to 7x10⁻⁴ Pa when equipped with the molecular pump.
Rotary Split Tube Furnace Technical Parameters
| Model | Tube Dia*Heating Zone (mm) | Power | Max. Temp (℃) | Working Temp (℃) | Thermo couple | Tube Material | Heating Elements |
|---|---|---|---|---|---|---|---|
BR-12NRT-60/300 | 60*300 | 5 | 1200 | 1100 | K type | Quartz Tube | Heating wires |
| BR-12NT-60/450 | 60*450 | 5 | 1200 | 1100 | K type | Quartz Tube | Heating wires |
| BR-12NT-80/300 | 80*300 | 5 | 1200 | 1100 | K type | Quartz Tube | Heating wires |
| BR-12NT-80/450 | 80*450 | 5 | 1200 | 1100 | K type | Quartz Tube | Heating wires |
| BR-12NT-100/300 | 100*300 | 7 | 1200 | 1100 | K type | Quartz Tube | Heating wires |
| BR-12NT-100/450 | 100*450 | 7 | 1200 | 1100 | K type | Quartz Tube | Heating wires |
| BR-12NT-150/300 | 150*300 | 9 | 1200 | 1100 | K type | Quartz Tube | Heating wires |
| BR-12NT-150/450 | 80*450 | 9 | 1200 | 1100 | K type | Quartz Tube | Heating wires |
*Other size can be customized.
