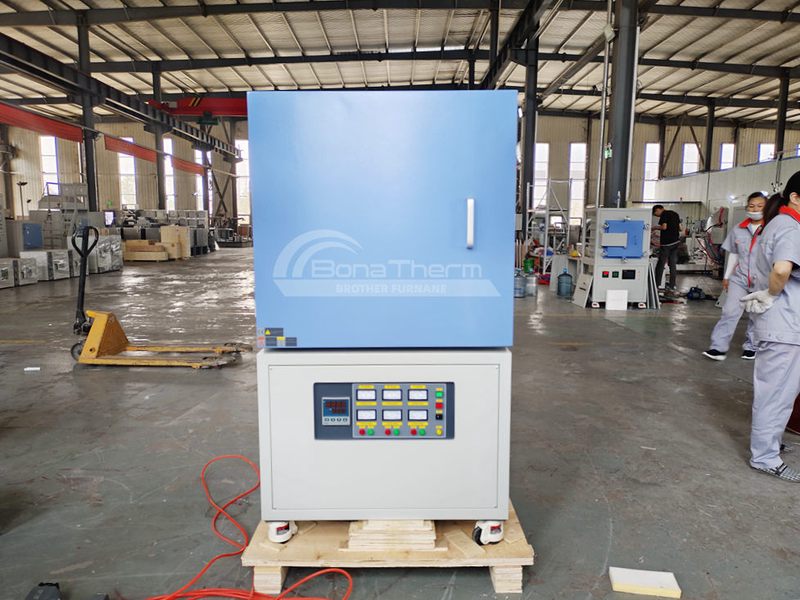

Electric Fusion Furnace up to 1800°C

A Fusion Oven up to 1800°C is designed for ultra-high-temperature thermal processing where excellent temperature stability and heating uniformity are essential. It is widely used in research laboratories, universities, advanced material development, and quality control laboratories for processing high-performance ceramics, refractory materials, glass, and specialty alloys.

The Brother Furnace 1800°C Fusion Oven features premium MoSi₂ heating elements, a ZrO₂-lined alumina fiber chamber, and a high-precision SCR PID temperature control system with ±1°C accuracy. The controller supports 51 programmable heating and cooling segments, allowing users to perform complex thermal cycles with excellent repeatability. The furnace is CE certified and incorporates an over-temperature protection system and a double-layer insulated housing with forced-air cooling, keeping the external surface temperature below 60°C for safe operation.

With a maximum operating temperature of 1800°C and a continuous working temperature of 1750°C, the furnace is suitable for a wide range of high-temperature fusion and heat treatment applications, including:

• Fusion of geological, mining, and cement samples for XRF analysis
• Sintering of advanced oxide and non-oxide ceramics
• Preparation of glass and ceramic materials
• Annealing and heat treatment of high-temperature engineering materials
• Calcination of refractory compounds and specialty powders
• Material research and thermal property evaluation in universities and R&D laboratories

Available in chamber volumes from 1 L to 36 L, the furnace provides flexible configurations to meet different laboratory requirements. Its imported Japanese ceramic fiber insulation minimizes heat loss and ensures excellent temperature uniformity, making it an ideal solution for precision fusion, sintering, and advanced materials research at temperatures up to 1800°C.

Fusion Furnace 1800C Standard Size:
