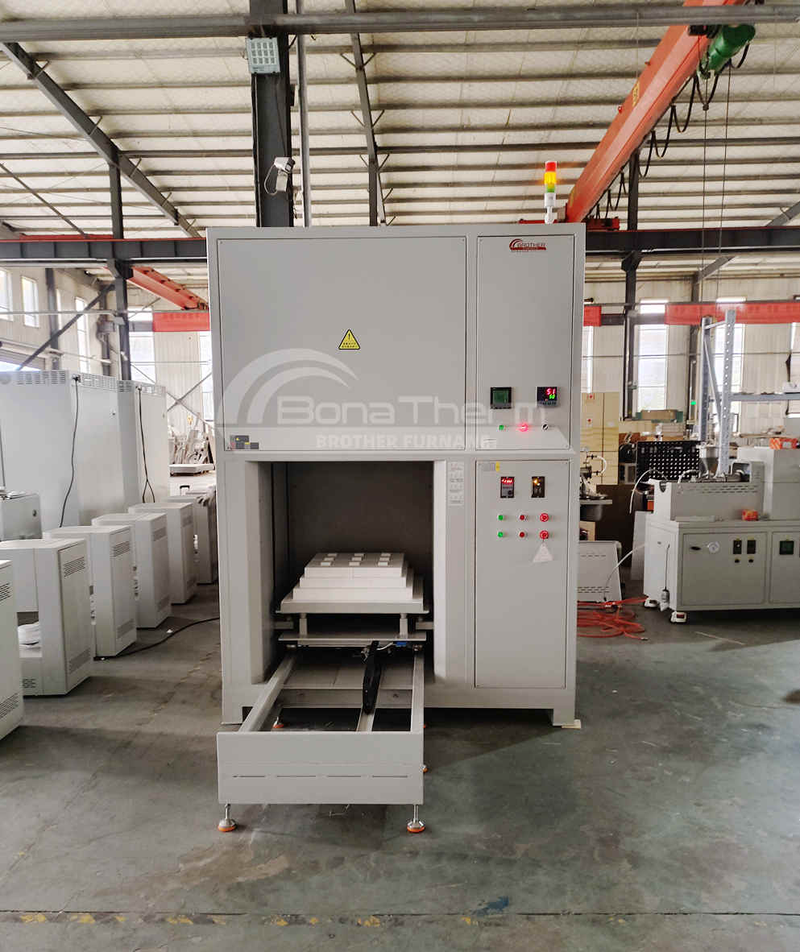

Bogie Hearth Ceramic Sintering Furnace Ready for Shipment

Our latest Bogie Hearth Industrial Ceramic Debinding and Sintering Furnace is now ready for shipment to an overseas customer. The furnace is specially designed for ceramic debinding, high-temperature sintering, and annealing applications, offering reliable performance and high production efficiency.

With a maximum working temperature of 1750°C, the furnace is suitable for processing advanced ceramic materials such as silicon nitride (Si₃N₄), aluminum nitride (AlN), alumina (Al₂O₃), silicon carbide (SiC), and zirconia ceramics (Y-TZP). It can also be used in powder metallurgy, Metal Injection Molding (MIM), high-temperature alloy sintering, and lithium battery cathode material preparation.

The lift-type bogie hearth structure provides large loading capacity while occupying only a small installation area. The movable hearth design allows easy loading and unloading of heavy materials, improving operational convenience.

Key Features Include:

• Chamber size: 500x500x500mm
• Four-sided heating for excellent temperature uniformity
• Intelligent touch-screen control system with programmable process curves
• Air-cooled debinding system for faster binder removal and reduced defects
• Energy-saving refractory structure with excellent thermal insulation
• Automatic lifting and loading system with multiple safety protections
• Stable exhaust management system for cleaner and more efficient operation

Thanks to its stable performance, user-friendly operation, and cost-effective design, this furnace continues to be highly welcomed by customers from both domestic and international markets.

Bogie Hearth Ceramic sintering furnace standard size

Note: Other sizes can be customized.
