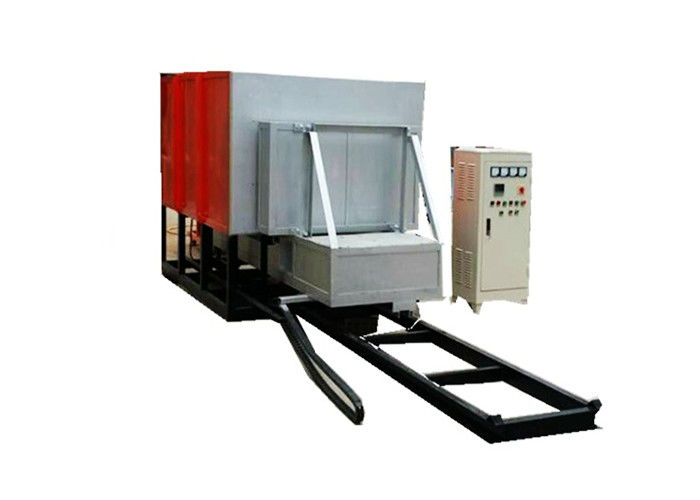

Ceramic Fiber Lining Bogie Hearth Furnace , Electric Heatedcar Bottom Furnace

Ceramic Fiber Lining Bogie Hearth Furnace , Electric Heatedcar Bottom Furnace

Ceramic Fiber Lining Bogie Hearth Furnace , Electric Heatedcar Bottom Furnace

Product Details:

Place of Origin: China
Brand Name: Brother Furnace
Certification: CE
Model Number: BR-CFB / XD-CFB

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Strong wooden box for global shipping
Delivery Time: 7-21 Working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 Sets per month
Contact Now
Detailed Product Description
Max. Temperature: 950℃ Capacity: 5625 L
Lining: Ceramic Fiber Heating Side: 4 Side Heating
Heating Element: High Quality Fe-Cr-Al-Mo Resistance Wire Control: PID Auto Control
MAX. HEATING RATE: 20°C /min TEMPERATURE ACCURACY: ±1℃

High Temperature Electric Heated Car bottom Furnace, Bogie Hearth Furnace up to 950℃







The design of the High Temperature Electric Heated Car bottom Furnace, Bogie Hearth Furnace up to 950℃ is divided into two types: medium temperature (0~ 950℃) and high temperature (0~1200℃), which is mainly used for High chromium, high manganese steel castings, gray cast iron parts, ductile iron parts, rolls, steel balls, crusher hammers, wear-resistant linings quenching, annealing, aging and heat treatment of various mechanical parts.

  • Maximum temperature 950℃.
  • All-fiber ceramic lining, high thermal efficiency, low heat loss and long lifetime.
  • The four-side heating device achieves excellent temperature uniformity.
  • Japanese ceramic nails, ensure the installation of heating elements with a long lifetime.
  • Build a horizontal silicon carbide plate/high temperature cast steel plate for the trolley.
  • Intelligent program temperature controller, which is available to edit and save the multi-segment program.

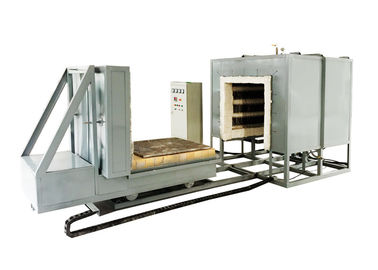

Ceramic Fiber Lining Bogie Hearth Furnace , Electric Heatedcar Bottom Furnace



Standard Spares:

  • Electrical hydraulic lift furnace door.
  • Circulating hot air blower and thermal deflector.
  • Horizontal moveable auxiliary trolley.
  • Automatically turn-able trolley easy for quenching.
  • Temperature control by different zones to improve temperature uniformity.
  • Visualized PLC automatic control system to monitor and record in real time.
  • Top exhaust valve, and inlet valves on both sides.





Optional Parts:

  • 7-inch touch screen
  • Furnace furniture
  • Software




High Temperature Electric Heated Car bottom Furnace Technical Parameter (0950)

Model Chamber size (LWH)mm Power (KW) Dimensions (LWH)mm
BR-CBF-45 1100×550×450 45 3040×1480×1620
BR-CBF-50 1300×650×450 50 3240×1580×1620
BR-CBF-75 1500×700×600 75 3440×1630×1770
BR-CBF-90 1500×800×600 90 3440×1730×1770
BR-CBF-105 1800×900×700 105 3740×1830×1870
BR-CBF-135 2100×1050×750 135 4060×2010×1980
BR-CBF-150 2300×1200×650 150 4260×2560×1880
BR-CBF-300 2500×1500×1500 300 4690×2860×2750































Why Brother's Bogie Hearth Furnace up to 950℃?

Manufacturer with 10+ years' experience

  • Best quality
  • Customized design
  • Experienced workers
  • Big factory


Customers from more than 30 countries choose us

  • Satisfied customers offer proof of our commitment to excellent design, quality and cost efficiency.



Best service, Fast response

  • Free design for special furnace
  • Free technical support for the lifetime
  • Free sample test



If you're interested in our High Temperature Electric Heated Car bottom Furnace, Bogie Hearth Furnace up to 950℃, contact us now to get a quote!
