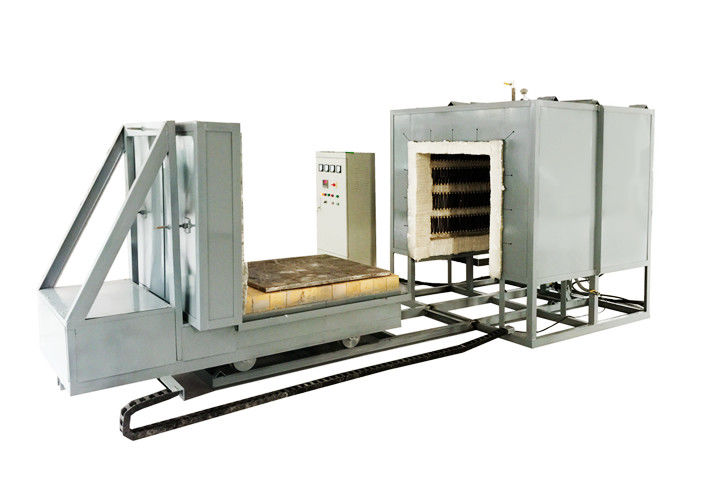

High Temperature Bogie Hearth Furnace , Electric Bogie Type Heat Treatment Furnace

High Temperature Bogie Hearth Furnace , Electric Bogie Type Heat Treatment Furnace

    • High Temperature Bogie Hearth Furnace , Electric Bogie Type Heat Treatment Furnace
  • High Temperature Bogie Hearth Furnace , Electric Bogie Type Heat Treatment Furnace

    Product Details:

    Place of Origin: China
    Brand Name: Brother Furnace
    Certification: CE
    Model Number: BR-CFB / XD-CFB

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiation
    Packaging Details: Strong wooden box for global shipping
    Delivery Time: 7-21 Working days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 200 Sets per month
    Contact Now
    Detailed Product Description
    Max. Temperature: 950℃ Or 1200℃ Capacity: 5625 L
    Lining: Ceramic Fiber Heating Side: 4 Side Heating
    Heating Element: High Quality Fe-Cr-Al-Mo Resistance Wire Control: PID Auto Control
    MAX. HEATING RATE: 20°C /min TEMPERATURE ACCURACY: ±1℃
    High Light:

    bogie type heat treatment furnace

    ,

    carrier electric furnace

    Bogie Hearth Furnace



    High Temperature Electric Bogie Hearth Furnace, 1200℃ Car bottom Furnace



    The design of the bogie hearth furnace is divided into two types: medium temperature (0~ 950℃) and high temperature (0~1200℃), which is mainly used for High chromium, high manganese steel castings, gray cast iron parts, ductile iron parts, rolls, steel balls, crusher hammers, wear-resistant linings quenching, annealing, aging and heat treatment of various mechanical parts.
    High Temperature Bogie Hearth Furnace , Electric Bogie Type Heat Treatment Furnace 0

    • Maximum temperature 950℃ and 1200℃.
    • All-fiber ceramic lining, high thermal efficiency, low heat loss and long lifetime.
    • The four-side heating device achieves excellent temperature uniformity.
    • Japanese ceramic nails, ensure the installation of heating elements with a long lifetime.
    • Build a horizontal silicon carbide plate/high temperature cast steel plate for the trolley.
    • Intelligent program temperature controller, which is available to edit and save the multi-segment program.





    Standard Spares:

    • Electrical hydraulic lift furnace door.
    • Circulating hot air blower and thermal deflector.
    • Horizontal moveable auxiliary trolley.
    • Automatically turn-able trolley easy for quenching.
    • Temperature control by different zones to improve temperature uniformity.
    • Visualized PLC automatic control system to monitor and record in real time.
    • Top exhaust valve, and inlet valves on both sides.





    Optional Parts:

    • 7-inch touch screen
    • Furnace furniture
    • Software




    Technical Parameter (0950)

    Model Chamber size (LWH)mm Power (KW) Dimensions (LWH)mm
    BR-CBF-45 1100×550×450 45 3040×1480×1620
    BR-CBF-50 1300×650×450 50 3240×1580×1620
    BR-CBF-75 1500×700×600 75 3440×1630×1770
    BR-CBF-90 1500×800×600 90 3440×1730×1770
    BR-CBF-105 1800×900×700 105 3740×1830×1870
    BR-CBF-135 2100×1050×750 135 4060×2010×1980
    BR-CBF-150 2300×1200×650 150 4260×2560×1880
    BR-CBF-300 2500×1500×1500 300 4690×2860×2750

























    Technical Parameter (01200)

    Model Chamber size (LWH)mm Power (KW) Dimensions (LWH)mm
    BR-CBF-65 1100×550×450 65 3100×1600×1750
    BR-CBF-75 1300×650×450 75 3300×1700×1750
    BR-CBF-110 1500×700×600 110 3500×1750×1900
    BR-CBF-120 1500×800×600 120 3500×1850×1900
    BR-CBF-150 1800×900×700 150 3800×1950×2000
    BR-CBF-210 2100×1050×750 210 4120×2130×2110
    BR-CBF-220 2300×1200×650 220 4320×2680×2010
    BR-CBF-450 2500×1500×1500 450 4750×2980×2870
