110V / AC 220V Heat Treatment Muffle Furnace , 1 - 8L Muffle Ovens Laboratory

110V / AC 220V Heat Treatment Muffle Furnace , 1 - 8L Muffle Ovens Laboratory

    • 110V / AC 220V Heat Treatment Muffle Furnace , 1 - 8L Muffle Ovens Laboratory
  • 110V / AC 220V Heat Treatment Muffle Furnace , 1 - 8L Muffle Ovens Laboratory

    Product Details:

    Place of Origin: China
    Brand Name: Brother Furnace
    Certification: CE
    Model Number: BR-18HM / XD-18HM

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiation
    Packaging Details: Strong wooden box for global shipping
    Delivery Time: 7-21 Working days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 200 Sets per month
    Contact Now
    Detailed Product Description
    MAX WORKING TEMPERATURE: 1800℃ VOLUME: 1 ~ 8L
    HEATING ELEMENT: Super MoSi2 Heating Element Furnace Chamber: Ceramic Fiber Chamber Imported From Japan, Ultra-high Temperature Coating Inside
    TEMPERATURE CONTROL: 50 Segments Programmable And PID Auto Control ALARM: With Over Temperature Alarm Function
    COOLING: Cooling Fan Can Reduce The Temperature Of The Casing VOTAGE: AC 110V Or AC 220V Or AC 380V 50/60 Hz
    MAX. HEATING RATE: 20°C /min TEMPERATURE ACCURACY: ±1℃
    TEMPERATURE UNIFORMITY: ±5℃ Application: Lab Heat Treatment
    High Light:

    electric muffle furnace

    ,

    heat treatment muffle furnace

    High Temperature 1800℃ Lab Heat Treatment Muffle Furnace, 1800C Heat Treatment Box Furnace







    Brother's High Temperature 1800℃ Lab Heat Treatment Muffle Furnace, 1800C Heat Treatment Box Furnace is mainly used for the lab heat treatment process under 1800C.



    Brother muffle furnace using polycrystalline mullite fiber lining, and the total thickness is 120-250mm, to ensure the very good thermal effect. Double layer of furnace shell with fan cooling, the surface temperature is less than 60℃. Strength structured furnace roof, to ensure long life to avoid any collapse from continuous working.

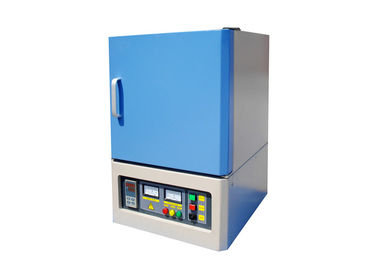

    110V / AC 220V Heat Treatment Muffle Furnace , 1 - 8L Muffle Ovens Laboratory 0

    This furnace is mainly used for universities, research institutes and production enterprises for the sintering, melting, analysis of metal, non-metal and other compound materials.

    • Max working temperature 1800℃
    • Volume 1~8L
    • Super MoSi2 heating element.
    • Ceramic fiber chamber imported from Japan, ultra-high temperature coating inside.
    • 50 segments programmable and PID auto control
    • With over temperature alarm function
    • Double layer of furnace shell with fan cooling, the Surface temperature is less than 60℃


    Standard Spares:

    • Fire brick
    • High temperature gloves
    • Crucible clip
    • Operation Manual


    Optional Spares:

    • 7-inch touch screen
    • Gas vent
    • Observation hole
    • Furnace furniture
    • Alumina crucible
    • Software







    High Temperature 1800℃ Lab Heat Treatment Muffle Furnace Technical Parameter:

    Model

    Max

    Temperature

    (℃)

    Inner size

    (W *H * D) mm

    Volume

    (L)

    Power

    (KW)

    Phase Thermocouple
    BR-18HM-1 1800 100*100*100 1 2 1 B type
    BR-18HM-2 1800 120*120*130 2 4 1 B type
    BR-18HM-3 1800 150*150*150 3 6 1 B type
    BR-18HM-5 1800 150*150*200 5 7 1 B type
    BR-18HM-8 1800 200*200*200 8 8 1 B type







    Why Brother's High Temperature 1800℃ Lab Heat Treatment Muffle Furnace?



    Manufacturer with 10+ years' experience

    • Best quality
    • Customized design
    • Experienced workers
    • Big factory


    Customers from more than 30 countries choose us

    • Satisfied customers offer proof of our commitment to excellent design, quality and cost efficiency.


    Best service, Fast response

    • Free design for special furnace
    • Free technical support for the lifetime
    • Free sample test



    If you're inerested in our High Temperature 1800℃ Lab Heat Treatment Muffle Furnace, 1800C Heat Treatment Box Furnace, contact us now to get a quote!
