1200 ℃ Electric Lab Muffle Furnace High Temperature For Research Institutes

1200 ℃ Electric Lab Muffle Furnace High Temperature For Research Institutes

    • 1200 ℃ Electric Lab Muffle Furnace High Temperature For Research Institutes
    • 1200 ℃ Electric Lab Muffle Furnace High Temperature For Research Institutes
    • 1200 ℃ Electric Lab Muffle Furnace High Temperature For Research Institutes
    • 1200 ℃ Electric Lab Muffle Furnace High Temperature For Research Institutes
  • 1200 ℃ Electric Lab Muffle Furnace High Temperature For Research Institutes

    Product Details:

    Place of Origin: China
    Brand Name: Brother Furnace
    Certification: CE
    Model Number: BR-12N / XD-12N

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiation
    Packaging Details: Strong wooden box for global shipping
    Delivery Time: 7-21 Working days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 200 Sets per month
    Contact Now
    Detailed Product Description
    Max Working Temperature: RT ~ 1200℃ Volume: 1 ~ 1000L
    Heating Element: High Quality Fe-Cr-Al-Mo Resistance Wire Furnace Door: The Upper Door And The Side Door Can Be Customized To Keep The Operator Away From The Heat Source
    Temperature Control: 50 Segments Programmable And PID Auto Control Alarm: With Over Temperature Alarm Function
    Cooling: Cooling Fan Can Reduce The Temperature Of The Casing Votage: AC 110V Or AC 220V Or AC 380V 50/60 Hz
    Max. Heating Rate: 20°C /min Temperature Accuracy: ±1℃
    Temperature Uniformity: ±5℃ Over 120mm @ 1200℃; ±3℃ Over 80mm @ 1100℃

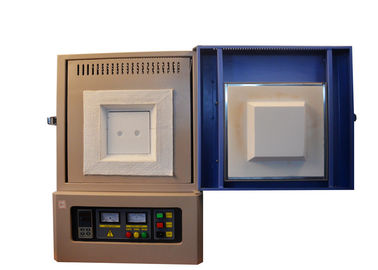

    1200℃ Muffle Furnace



    Using polycrystalline mullite fiber lining, and the total thickness is 120-250mm, to ensure the very good thermal effect. Double layer of furnace shell with fan cooling, the surface temperature is less than 60℃. Strength structured furnace roof, to ensure long life to avoid any collapse from continuous working.

    This furnace is mainly used for universities,  research institutes and production enterprises for the sintering, melting, analysis of metal, non-metal and other compound materials.
    1200 ℃ Electric Lab Muffle Furnace High Temperature For Research Institutes

    Standard Parts:

    • High-temperature gloves
    • Crucible clip
    • Operation Manual


    Optional Parts:

    • 7-inch touch screen
    • Gas Vent
    • Observation Hole
    • Furnace Furniture
    • Alumina crucible
    • Software


    1200C Muffle Furnace Video









    Technical Parameter (1200 type)

    Model Max temperature(°C)

    Inner size

    (W *H * D) mm

    Volume

    (L)

    Power

    (KW)

    Phase Thermocouple
    BR-12N-1 1200 100*100*100 1 0.8 1 K type
    BR-12N-2 1200 120*120*130 2 1.2 1 K type
    BR-12N-3 1200 150*150*150 3 2.5 1 K type
    BR-12N-5 1200 150*150*200 5 3 1 K type
    BR-12N-8 1200 200*200*200 8 5 1 K type
    BR-12N-12 1200 200*200*300 12 6 1 K type
    BR-12N-27 1200 300*300*300 27 8 1 K type
    BR-12N-36 1200 300*300*400 36 10 3 K type
    BR-12N-64 1200 400*400*400 64 16 3 K type
    BR-12N-125 1200 500*500*500 125 25 3 K type
    BR-12N-216 1200 600*600*600 216 36 3 K type
    BR-12N-512 1200 800*800*800 512 64 3 K type
    BR-12N-729 1200 900*900*900 729 80 3 K type
    BR-12N-1000 1200 1000*1000*1000 1000 100 3 K type
    Chamber size can be customized




    Why Us?

    Manufacturer with 10+ years' experience

    • Best quality
    • Customized design
    • Experienced workers
    • Big factory


    Customers from more than 30 countries choose us

    • Satisfied customers offer proof of our commitment to excellent design, quality and cost efficiency.



    Best service, Fast response

    • Free design for special furnace
    • Free technical support for the lifetime
    • Free sample test
