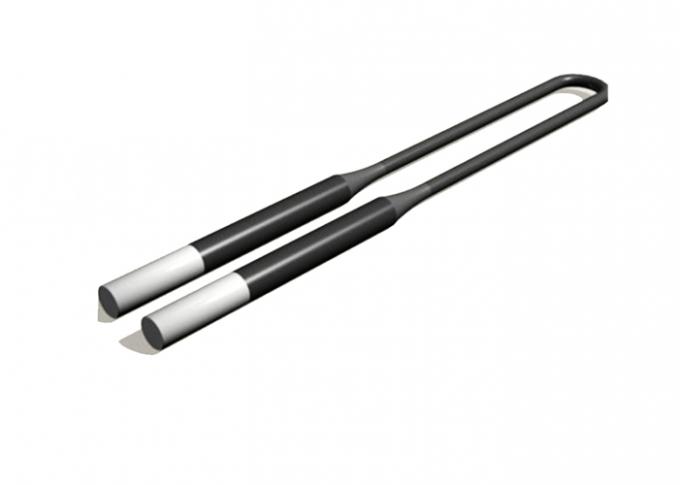

High Density Mosi2 Heating Elements , 1800 °C U Shaped Heating Element

High Density Mosi2 Heating Elements , 1800 °C U Shaped Heating Element

  • High Density Mosi2 Heating Elements , 1800 °C U Shaped Heating Element
High Density Mosi2 Heating Elements , 1800 °C U Shaped Heating Element
Product Details:
Place of Origin: China
Brand Name: Brother Furnace
Certification: CE
Model Number: BR1700 / BR1800
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Strong wooden box for global shipping
Delivery Time: 3-21 Working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 pcs per month
Contact Now
Detailed Product Description
Max Temperature: 1700°C / 1800°C Shape: U Shape
Diameter: 3/6, 4/9, 6/12, 7/12, 9/18, 12/24mm Heating Zone Length: 80 - 1500
Cooling Zone Length: 80 - 1500 Molybdenum Purity: 99.9% High Purity
High Light:

moly disilicide heating elements

,

electric heating element

U Shape High Purity MoSi2 Heating Elements, Molybdenum Disilicide Heating Rod up to 1800°C



  • The heater has the function of antioxidant and auto repair, and suitable to different kinds of continuous working during the oxygen atmosphere.
  • Moulding by heat process and model size is standard, so we can produce special shape and size according to customer requirements.
  • Adopt a special process for joint moulding with fasten welding and strong impact resistance.
  • High density and excellent electrical conductivity, high heating rate, and low power consumption.
  • The old one and the new one could be using together.





High Density Mosi2 Heating Elements , 1800 °C U Shaped Heating Element 0



High Density Mosi2 Heating Elements , 1800 °C U Shaped Heating Element 1



High Density Mosi2 Heating Elements , 1800 °C U Shaped Heating Element 2





Application: Widely used in research and production of glass, ceramic, refractory, metallurgy, steel-making, crystal, electronic parts, semiconductor material. The model including BR1700 (working temperature 1600℃) and BR1800 (working temperature 1700℃)





U Shape High Purity MoSi2 Heating Elements up to 1800°C Technical parameter

Heating zone dia.

D1

Cooling zone dia.

D2

Heating zone length

Le

Cooling zone length

Lu

Central distance

A

3mm 6mm 80-300mm 80-500mm 25mm
4mm 9mm 80-350mm 80-500mm 25mm
6mm 12mm 80-800mm 80-1000mm 25-60mm
7mm 12mm 80-800mm 80-1000mm 25-60mm
9mm 18mm 100-1200mm 100-2500mm 40-80mm
12mm 24mm 100-1500mm 100-1500mm 40-100mm

Note: 1.Special size is customizable.

2.Delivery time only need 3 days for normal size

Model: BR1700 (working temperature 1600℃) and BR1800(working temperature 1700℃)








Please confirm the following data before order:



1. Type

2. Diameter: D1, D2

3. Heating zone length: Le

4. Cooling zone length: Lu

5. The distance between two terminals: A





If you're interested our U Shape High Purity MoSi2 Heating Elements, Molybdenum Disilicide Heating Rod up to 1800°C, contact us now to get a quote!
