Electric Ceramic Oven Debinding Furnace , 1100 C High Temperature Box Furnace

Electric Ceramic Oven Debinding Furnace , 1100 C High Temperature Box Furnace

Electric Ceramic Oven Debinding Furnace , 1100 C High Temperature Box Furnace

Product Details:

Place of Origin: China
Brand Name: Brother Furnace
Certification: CE
Model Number: BR-TZL / XD-TZL

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Strong wooden box for global shipping
Delivery Time: 7-21 Working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 Sets per month
Contact Now
Detailed Product Description
Max. Temperature: 1100℃ Capacity: 36 ~ 512L
TEMPERATURE CONTROL: 50 Segments Programmable And PID Auto Control Air System: Air Entering System Included
Preheating: Air Preheating System Included Heating Side: 5 Sides Heating
TEMPERATURE UNIFORMITY: ±5℃ Application: Dewaxing

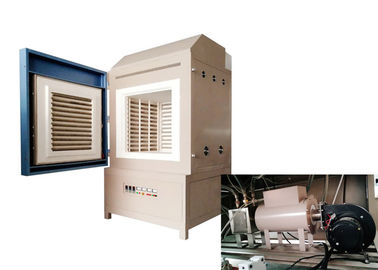

1100℃ Ceramic Dewaxing furnace, 1100C Dewaxing Box Furnace




Brother's 1100℃ Dewaxing furnace, 1100C Dewaxing Box Furnace is mainly used in the process of ceramic dewaxing. It can also be used for magnetic materials, ceramic chips, ferrites. Debinding and pre-burning process of magnetic sheets and other electronic components. The unique thermal field control technology ensures the uniformity of the temperature field and required for the two process stages of debinding and sintering.

Electric Ceramic Oven Debinding Furnace , 1100 C High Temperature Box Furnace

  • Molybdenum-containing resistance wire, the maximum temperature is 1100℃.
  • To ensure the ideal temperature field uniformity, heating in 5 sides.
  • In order to speed up the discharge of exhaust gas and prevent the high concentration of hydrocarbons released from the rubber discharge with the danger of explosion. This electric furnace is designed with fresh air entering the system.
  • In order to prevent the unevenness of thermal field temperature fluctuation by fresh air, there is a design of the fresh air preheating system and the ceramic tube homogenization system, which can greatly improve the temperature uniformity.
  • The exhaust gas collected to collecting cover of the furnace top through the electric exhaust cover, and collect the cooled wax.



Standard Spares:

  • High-temperature gloves
  • Crucible clip
  • Operation Manual

Optional Spares:

  • Mullite multi-layer shelf.
  • Exhaust gas pyrolysis package to pyrolyze the irritating organic matter.


1100℃ Ceramic Dewaxing furnace Technical Parameter:

Model Heating zone (mm) Temp. Power Votage
BR-TZL-334 300*300*400 1100℃ 12KW 380V
BR-TZL-555 500*500*500 1100℃ 25KW 380V
BR-TZL-666 600*600*600 1100℃ 36KW 380V
BR-TZL-888 800*800*800 1100℃ 64KW 380V










Why Brother's 1100℃ Ceramic Dewaxing furnace?

Manufacturer with 10+ years' experience

  • Best quality
  • Customized design
  • Experienced workers
  • Big factory

Customers from more than 30 countries choose us

  • Satisfied customers offer proof of our commitment to excellent design, quality and cost efficiency.

Best service, Fast response

  • Free design for special furnace
  • Free technical support for the lifetime
  • Free sample test


If you're interested in our 1100℃ Ceramic Dewaxing furnace, 1100C Dewaxing Box Furnace, contact us now to get a quote!
