Collapse Proof Vacuum Sintering Furnace B Type MoSi2 Heating Element Custom Volume

Collapse Proof Vacuum Sintering Furnace B Type MoSi2 Heating Element Custom Volume

Collapse Proof Vacuum Sintering Furnace B Type MoSi2 Heating Element Custom Volume

Product Details:

Place of Origin: China
Brand Name: Brother Furnace
Certification: CE
Model Number: BR-17M / XD-17M

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Strong wooden box for global shipping
Delivery Time: 7-21 Working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 Sets per month
Contact Now
Detailed Product Description
MAX WORKING TEMPERATURE: 1700℃ VOLUME: 1 ~ 1000L
HEATING ELEMENT: High Quality MoSi2 Heating Element Furnace Door: The Upper Door And The Side Door Can Be Customized To Keep The Operator Away From The Heat Source
TEMPERATURE CONTROL: 50 Segments Programmable And PID Auto Control ALARM: With Over Temperature Alarm Function
COOLING: Cooling Fan Can Reduce The Temperature Of The Casing VOTAGE: AC 110V Or AC 220V Or AC 380V 50/60 Hz
MAX. HEATING RATE: 20°C /min TEMPERATURE ACCURACY: ±1℃
TEMPERATURE UNIFORMITY: ±5℃ Application: Industrial Sintering Under 1700°C

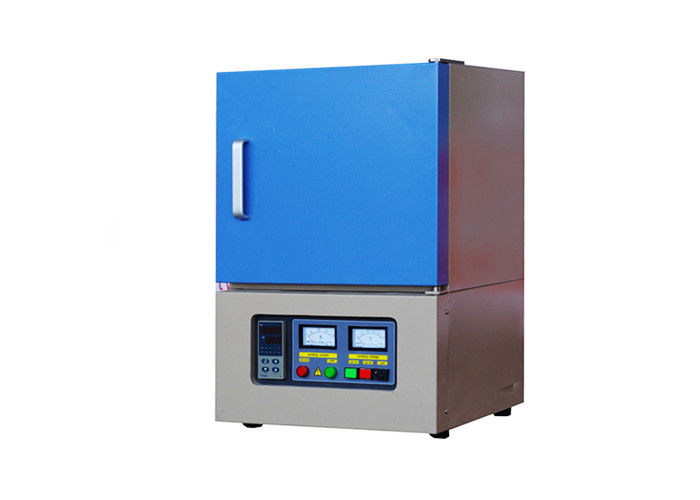

1700℃ High Temperature Industrial Sintering Muffle Furnace, 1700C Industrial Sintering Box Furnace





Brother's 1700℃ High Temperature Industrial Sintering Muffle Furnace, 1700C Industrial Sintering Box Furnace mainly used for production enterprises to do the high temperature sintering under 1700℃ .
 Collapse Proof Vacuum Sintering Furnace B Type MoSi2 Heating Element Custom Volume
Brother muffle furnace using polycrystalline mullite fiber lining, and the total thickness is 120-250mm, to ensure the very good thermal effect. Double layer of furnace shell with fan cooling, the surface temperature is less than 60℃. Strength structured furnace roof, to ensure long life to avoid any collapse from continuous working.


This furnace is mainly used for universities, research institutes and production enterprises for the sintering, melting, analysis of metal, non-metal and other compound materials.

  • Max working temperature 1700℃
  • Volume: as per your order
  • High quality MoSi2 heating element.
  • The upper door and the side door can be customized to keep the operator away from the heat source.
  • 50 segments programmable and PID auto control
  • With over temperature alarm function


Standard Spares:

  • Fire brick
  • High temperature gloves
  • Crucible clip
  • Operation Manual
  • MoSi2 heating element 2pcs

Optional Spares:

  • 7-inch touch screen
  • Gas vent
  • Observation hole
  • Software
  • Furnace furniture as per your requirement.
  • Alumina crucible as per your requirement
  • Special design as per your requirement




1700℃ High Temperature Industrial Sintering Muffle Furnace Technical Parameter

Model

Max temperature

(°C)

Inner size

(W *H * D) mm

Volume

(L)

Power

(KW)

Phase Thermocouple
BR-17M-1 1700 100*100*100 1 1 1 B type
BR-17M-2 1700 120*120*130 2 3 1 B type
BR-17M-3 1700 150*150*150 3 4 1 B type
BR-17M-5 1700 150*150*200 5 5 1 B type
BR-17M-8 1700 200*200*200 8 7 1 B type
BR-17M-12 1700 200*200*300 12 8 1 B type
BR-17M-27 1700 300*300*300 27 10 3 B type
BR-17M-36 1700 300*300*400 36 12 3 B type
BR-17M-64 1700 400*400*400 64 20 3 B type
BR-17M-125 1700 500*500*500 125 30 3 B type
BR-17M-216 1700 600*600*600 216 45 3 B type
BR-17M-512 1700 800*800*800 512 80 3 B type
BR-17M-729 1700 900*900*900 729 96 3 B type
BR-17M-1000 1700 1000*1000*1000 1000 120 3 B type
Chamber size can be customized





Why Brother's 1700℃ High Temperature Industrial Sintering Box Furnace?

Manufacturer with 10+ years' experience

  • Best quality
  • Customized design
  • Experienced workers
  • Big factory


Customers from more than 30 countries choose us

  • Satisfied customers offer proof of our commitment to excellent design, quality and cost efficiency.


Best service, Fast response

  • Free design for special furnace
  • Free technical support for the lifetime
  • Free sample test


If you're interested in our 1700℃ High Temperature Industrial Sintering Muffle Furnace, 1700C Industrial Sintering Box Furnace, contact us now to get a quote!
