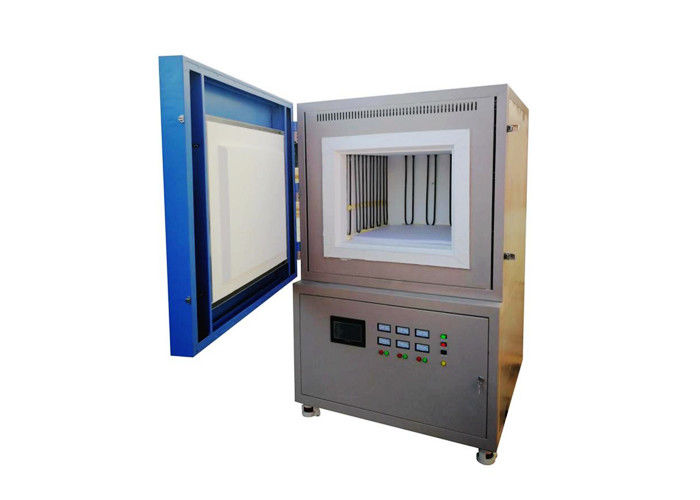

MoSi2 Heating Element Heat Treatment Muffle Furnace 1800 C For Production Enterprises

MoSi2 Heating Element Heat Treatment Muffle Furnace 1800 C For Production Enterprises

    • MoSi2 Heating Element Heat Treatment Muffle Furnace 1800 C For Production Enterprises
  • MoSi2 Heating Element Heat Treatment Muffle Furnace 1800 C For Production Enterprises

    Product Details:

    Place of Origin: China
    Brand Name: Brother Furnace
    Certification: CE
    Model Number: BR-18HM / XD-18HM

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiation
    Packaging Details: Strong wooden box for global shipping
    Delivery Time: 7-21 Working days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 200 Sets per month
    Contact Now
    Detailed Product Description
    MAX WORKING TEMPERATURE: 1800℃ VOLUME: 1 ~ 8L
    HEATING ELEMENT: Super MoSi2 Heating Element Furnace Chamber: Ceramic Fiber Chamber Imported From Japan, Ultra-high Temperature Coating Inside
    TEMPERATURE CONTROL: 50 Segments Programmable And PID Auto Control ALARM: With Over Temperature Alarm Function
    COOLING: Cooling Fan Can Reduce The Temperature Of The Casing VOTAGE: AC 110V Or AC 220V Or AC 380V 50/60 Hz
    MAX. HEATING RATE: 20°C /min TEMPERATURE ACCURACY: ±1℃
    TEMPERATURE UNIFORMITY: ±5℃ Application: Industrial Heat Treatment Under 1800°C
    High Light:

    industrial metal melting furnace

    ,

    industrial chamber furnace

    High Temperature 1800℃ Industrial Heat Treatment Muffle Furnace, 1800C Heat Treatment Industrial Chamber Furnace





    Brother's High Temperature 1800℃ Industrial Heat Treatment Muffle Furnace, 1800C Heat Treatment Industrial Box Furnace mainly used for production enterprises for the heat treatment process under 1800℃.



    Brother muffle furnace using polycrystalline mullite fiber lining, and the total thickness is 120-250mm, to ensure the very good thermal effect. Double layer of furnace shell with fan cooling, the surface temperature is less than 60℃. Strength structured furnace roof, to ensure long life to avoid any collapse from continuous working.


    This furnace is mainly used for universities, research institutes and production enterprises for the sintering, melting, analysis of metal, non-metal and other compound materials.

    • Max working temperature 1800℃
    • Volume: as per your order
    • Super MoSi2 heating element.
    • Ceramic fiber chamber imported from Japan, ultra-high temperature coating inside.
    • 50 segments programmable and PID auto control
    • With over temperature alarm function
    • Double layer of furnace shell with fan cooling, the Surface temperature is less than 60℃

    MoSi2 Heating Element Heat Treatment Muffle Furnace 1800 C For Production Enterprises 0


    Standard Spares:

    • Fire brick
    • High temperature gloves
    • Crucible clip
    • Operation Manual

    Optional Spares:

    • 7-inch touch screen
    • Gas vent
    • Observation hole
    • Software
    • Furnace furniture as per your requirement.
    • Alumina crucible as per your requirement
    • Special design as per your requirement







    1800℃ Industrial Heat Treatment Muffle Furnace Technical Parameter:

    Model

    Max

    Temperature

    (℃)

    Inner size

    (W *H * D) mm

    Volume

    (L)

    Power

    (KW)

    Phase Thermocouple
    BR-18HM-1 1800 100*100*100 1 2 1 B type
    BR-18HM-2 1800 120*120*130 2 4 1 B type
    BR-18HM-3 1800 150*150*150 3 6 1 B type
    BR-18HM-5 1800 150*150*200 5 7 1 B type
    BR-18HM-8 1800 200*200*200 8 8 1 B type

    Other chamber sizes can be customized.





    Why Brother's 1800℃ Industrial Heat Treatment Box Furnace?



    Manufacturer with 10+ years' experience

    • Best quality
    • Customized design
    • Experienced workers
    • Big factory


    Customers from more than 30 countries choose us

    • Satisfied customers offer proof of our commitment to excellent design, quality and cost efficiency.


    Best service, Fast response

    • Free design for special furnace
    • Free technical support for the lifetime
    • Free sample test



    If you're inerested in our High Temperature 1800℃ Industrial Heat Treatment Muffle Furnace, 1800C Heat Treatment Industrial Box Furnace, contact us now to get a quote!
