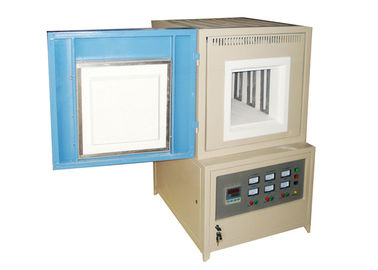

Heat Treatment Industrial Muffle Furnace 1400C Polycrystalline Mullite Fiber Lining

Heat Treatment Industrial Muffle Furnace 1400C Polycrystalline Mullite Fiber Lining

Heat Treatment Industrial Muffle Furnace 1400C Polycrystalline Mullite Fiber Lining

Product Details:

Place of Origin: China
Brand Name: Brother Furnace
Certification: CE
Model Number: BR-12S / XD-14S

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Strong wooden box for global shipping
Delivery Time: 7-21 Working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 Sets per month
Contact Now
Detailed Product Description
MAX WORKING TEMPERATURE: 1400℃ VOLUME: 1 ~ 1000L
HEATING ELEMENT: High Quality SiC Heating Element FURNACE DOOR: The Upper Door And The Side Door Can Be Customized To Keep The Operator Away From The Heat Source
TEMPERATURE CONTROL: 50 Segments Programmable And PID Auto Control ALARM: With Over Temperature Alarm Function
COOLING: Cooling Fan Can Reduce The Temperature Of The Casing VOTAGE: AC 110V Or AC 220V Or AC 380V 50/60 Hz
MAX. HEATING RATE: 20°C /min TEMPERATURE ACCURACY: ±1℃
TEMPERATURE UNIFORMITY: ±5℃ Application: Industrial Heat Treatment Under 1400°C

High Temperature 1400℃ Industrial Heat Treatment Muffle Furnace, 1400C Heat Treatment Industrial Box Furnace

Brother's High Temperature 1400℃ Industrial Heat Treatment Muffle Furnace, 1400C Heat Treatment Industrial Box Furnace mainly used for production enterprises for the heat treatment under 1400C.

Using polycrystalline mullite fiber lining, and the total thickness is 120-250mm, to ensure the very good thermal effect. Double layer of furnace shell with fan cooling, the surface temperature is less than 60℃. Strength structured furnace roof, to ensure long life to avoid any collapse from continuous working.
Heat Treatment Industrial Muffle Furnace 1400C Polycrystalline Mullite Fiber Lining

  • Max working temperature: 1400℃
  • Volume: as per your order
  • High quality SiC heating element.
  • The upper door and the side door can be customized to keep the operator away from the heat source.
  • 50 segments programmable and PID auto control
  • With over temperature alarm function


Standard Spares:

  • Fire brick
  • High temperature gloves
  • Crucible clip
  • Operation Manual
  • SiC heating element 2pcs


Optional Spares:

  • 7-inch touch screen
  • Gas vent
  • Observation hole
  • Software
  • Furnace furniture as per your requirement.
  • Alumina crucible as per your requirement
  • Special design as per your requirement




1400℃ Industrial Heat Treatment Muffle Furnace Technical Parameter

ModelMax temperature(°C)

Inner size

(W *H * D) mm

Volume

(L)

Power

(KW)

PhaseThermocouple
BR-14S-11400100*100*100111S type
BR-14S-21400120*120*130221S type
BR-14S-31400150*150*150331S type
BR-14S-51400150*150*200541S type
BR-14S-81400200*200*200851S type
BR-14S-121400200*200*3001271S type
BR-14S-271400300*300*3002791S type
BR-14S-361400300*300*40036113S type
BR-14S-641400400*400*40064183S type
BR-14S-1251400500*500*500125273S type
BR-14S-2161400600*600*600216403S type
BR-14S-5121400800*800*800512703S type
BR-14S-7291400900*900*900729883S type
BR-14S-100014001000*1000*100010001103S type
Chamber size can be customized





Why Brother's 1400℃ Industrial Heat Treatment Box Furnace?

Manufacturer with 10+ years' experience

  • Best quality
  • Customized design
  • Experienced workers
  • Big factory


Customers from more than 30 countries choose us

  • Satisfied customers offer proof of our commitment to excellent design, quality and cost efficiency.


Best service, Fast response

  • Free design for special furnace
  • Free technical support for the lifetime
  • Free sample test


If you're interested in our High Temperature 1400℃ Industrial Heat Treatment Muffle Furnace, 1400C Heat Treatment Industrial Box Furnace, contact us now to get a quote!
