Ceramic Fiber Chamber Electric Muffle Furnace , Manual High Temperature Muffle Furnace

Ceramic Fiber Chamber Electric Muffle Furnace , Manual High Temperature Muffle Furnace

  • Ceramic Fiber Chamber Electric Muffle Furnace , Manual High Temperature Muffle Furnace
Ceramic Fiber Chamber Electric Muffle Furnace , Manual High Temperature Muffle Furnace
Product Details:
Place of Origin: China
Brand Name: Brother Furnace
Certification: CE
Model Number: BR-12N / XD-12N
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Strong wooden box for global shipping
Delivery Time: 7-21 Working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 Sets per month
Contact Now
Detailed Product Description
Max Working Temperature: 1200℃ Volume: 1 ~ 1000L
Heating Element: High Quality Fe-Cr-Al-Mo Resistance Wire Furnace Door: The Upper Door And The Side Door Can Be Customized To Keep The Operator Away From The Heat Source
Temperature Control: 50 Segments Programmable And PID Auto Control Alarm: With Over Temperature Alarm Function
Cooling: Cooling Fan Can Reduce The Temperature Of The Casing Votage: AC 110V Or AC 220V Or AC 380V 50/60 Hz
Max. Heating Rate: 20°C /min Temperature Accuracy: ±1℃
Temperature Uniformity: ±5℃ Over 120mm @ 1200℃; ±3℃ Over 80mm @ 1100℃ Application: Industrial Heat Treatment Under 1200C
High Light:

vacuum muffle furnace

,

industrial metal melting furnace

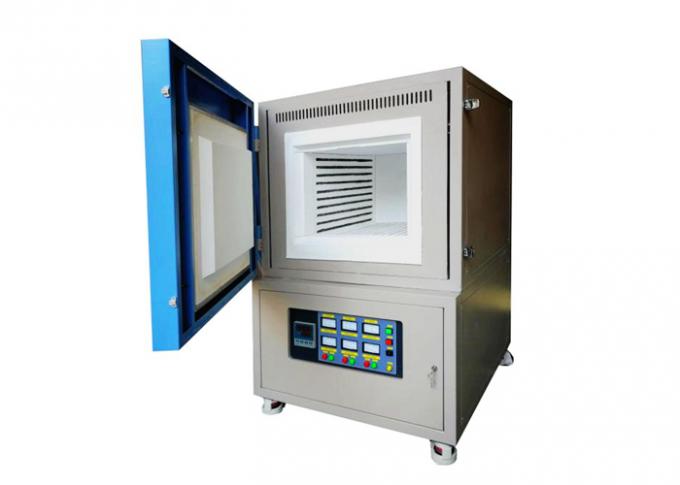

High Temperature 1200℃ Industrial Heat Treatment Muffle Furnace, 1200C Heat Treatment Industrial Box Furnace


Brother's High Temperature 1200℃ Industrial Heat Treatment Muffle Furnace, 1200C Heat Treatment Industrial Box Furnace mainly used for production enterprises for the heat treatment under 1200C.
 Ceramic Fiber Chamber Electric Muffle Furnace , Manual High Temperature Muffle Furnace 0
Using polycrystalline mullite fiber lining, and the total thickness is 120-250mm, to ensure the very good thermal effect. Double layer of furnace shell with fan cooling, the surface temperature is less than 60℃. Strength structured furnace roof, to ensure long life to avoid any collapse from continuous working.

  • Max Temperature: 1200℃
  • Volume: as per your order
  • Super heating wires
  • Ceramic fiber chamber imported from Japan, ultra-high temperature coating inside.
  • 50 segments programmable and PID auto control
  • With over temperature alarm function
  • Double layer of furnace shell with fan cooling, the Surface temperature is less than 60℃


Standard Spares:

  • Fire brick
  • High temperature gloves
  • Crucible clip
  • Operation Manual


Optional Spares:

  • 7-inch touch screen
  • Gas vent
  • Observation hole
  • Software
  • Furnace furniture as per your requirement.
  • Alumina crucible as per your requirement
  • Special design as per your requirement



1200℃ Industrial Heat Treatment Muffle Furnace Technical Parameter

ModelMax temperature(°C)

Inner size

(W *H * D) mm

Volume

(L)

Power

(KW)

PhaseThermocouple
BR-12N-11200100*100*10010.81K type
BR-12N-21200120*120*13021.21K type
BR-12N-31200150*150*15032.51K type
BR-12N-51200150*150*200531K type
BR-12N-81200200*200*200851K type
BR-12N-121200200*200*3001261K type
BR-12N-271200300*300*3002781K type
BR-12N-361200300*300*40036103K type
BR-12N-641200400*400*40064163K type
BR-12N-1251200500*500*500125253K type
BR-12N-2161200600*600*600216363K type
BR-12N-5121200800*800*800512643K type
BR-12N-7291200900*900*900729803K type
BR-12N-100012001000*1000*100010001003K type
Chamber size can be customized




Why Brother's High Temperature 1200℃ Industrial Heat Treatment Muffle Furnace?

Manufacturer with 10+ years' experience

  • Best quality
  • Customized design
  • Experienced workers
  • Big factory


Customers from more than 30 countries choose us

  • Satisfied customers offer proof of our commitment to excellent design, quality and cost-efficiency.



Best service, Fast response

  • Free design for special furnace
  • Free technical support for the lifetime
  • Free sample test


If you're interested in our High Temperature 1200℃ Industrial Heat Treatment Muffle Furnace, 1200C Heat Treatment Industrial Box Furnace, contact us now to get a quote!
