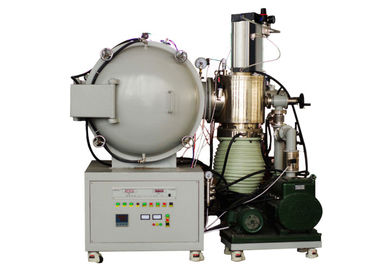

Silver / Copper / Nickel Base Vacuum Brazing Furnace Sintering For Ag / Cr / Ni

Silver / Copper / Nickel Base Vacuum Brazing Furnace Sintering For Ag / Cr / Ni

    • Silver / Copper / Nickel Base Vacuum Brazing Furnace Sintering For Ag / Cr / Ni
    • Silver / Copper / Nickel Base Vacuum Brazing Furnace Sintering For Ag / Cr / Ni
  • Silver / Copper / Nickel Base Vacuum Brazing Furnace Sintering For Ag / Cr / Ni

    Product Details:

    Place of Origin: China
    Brand Name: Brother Furnace
    Certification: CE
    Model Number: BR-QHS

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiation
    Packaging Details: Strong wooden box for global shipping
    Delivery Time: 7-30 Working days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 200 Sets per month
    Contact Now
    Detailed Product Description
    MAX. TEMPERATURE: 1350℃ CAPACITY: 12 ~ 324L
    MAX. VACUUM: 0.001Pa FURNACE CHAMBER: Molybdenum Foil
    HEATING ELEMENT: Molybdenum Heating Belt TEMPERATURE CONTROL: 50 Segments Programmable And PID Auto Control
    MAX. HEATING RATE: 20°C /min TEMPERATURE ACCURACY: ±1℃
    TEMPERATURE UNIFORMITY: ±5℃

    Silver/Copper/Nickel Base Brazing Furnace





    This kind of vacuum brazing furnace working temperature can reach 1350℃; Suitable for workpiece with silver/copper/nickel base as flux. Due to its high vacuum and high temperature, it can also be used for sintering and heat treatment of other workpieces.


    • Using molybdenum foil metal furnace, and molybdenum and tropical for heating element, the highest temperature can reach 1350℃.
    • The annular distribution of molybdenum heating belt and the furnace, the surrounding radiation heating, the furnace temperature uniformity is high, up to plus or minus 5 degrees.
    • Clean Molybdenum foil chamber, equipped with a mechanical pump + diffusion pump vacuum unit, cold vacuum 10^(-3)pa; Working vacuum is 10^(-2)pa.
    • As required, the inert gas can be added for accelerated cooling.



    Silver / Copper / Nickel Base Vacuum Brazing Furnace Sintering For Ag / Cr / Ni








    Brazing vacuum furnace quick cooling system



    Due to the slow cooling of ordinary brazing furnace, the production efficiency is seriously affected. In order to accelerate the cooling rate, our company combined with years of production practice experience developed a vacuum brazing furnace rapid cooling system. The high-temperature nitrogen in the furnace is forcefully pumped out by the vacuum fan, cooled by the cooling water bag, and then sent back to the furnace by the vacuum fan. This rapid cycle leads to rapid cooling.



    Silver / Copper / Nickel Base Vacuum Brazing Furnace Sintering For Ag / Cr / Ni



    Optional accessories:

    • External quick cooling system;From soldering temperature to 180 degrees, less than 1 hour.
    • Multi-layer rack, convenient for placing multi-layer brazing workpieces.
    • High quality flux imported from USA.



    Technical parameters:

    Model Chamber size Temp. Power Voltage
    BR-QHM-223 200*200*300 1350℃ 42kW 380V
    BR-QHM-334 300*300*400 1350℃ 72kW 380V
    BR-QHM-446 400*400*600 1350℃ 120kW 380V
    BR-QHM-557 500*500*700 1350℃ 160kW 380V
    BR-QHM-669 600*600*900 1350℃ 225kW 380V
