Alumina Base Vacuum Brazing Furnace Stainless Steel Chamber For Aluminum Alloy

Alumina Base Vacuum Brazing Furnace Stainless Steel Chamber For Aluminum Alloy

  • Alumina Base Vacuum Brazing Furnace Stainless Steel Chamber For Aluminum Alloy
  • Alumina Base Vacuum Brazing Furnace Stainless Steel Chamber For Aluminum Alloy
Alumina Base Vacuum Brazing Furnace Stainless Steel Chamber For Aluminum Alloy
Product Details:
Place of Origin: China
Brand Name: Brother Furnace
Certification: CE
Model Number: BR-QHS
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Strong wooden box for global shipping
Delivery Time: 7-30 Working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 Sets per month
Contact Now
Detailed Product Description
MAX. TEMPERATURE: 750℃ Capacity: 12 ~ 324L
Max. Vacuum: 0.001Pa Furnace Chamber: Stainless Steel Chamber
Heating Element: Heating Alloy Tube TEMPERATURE CONTROL: 50 Segments Programmable And PID Auto Control
MAX. HEATING RATE: 20°C /min TEMPERATURE ACCURACY: ±1℃
TEMPERATURE UNIFORMITY: ±5℃
High Light:

high temperature vacuum oven

,

horizontal vacuum furnace

Alumina Base Brazing Furnace

High Temperature Alumina Base Brazing Furnace, Vacuum Brazing Furnace For Aluminum Alloy







This is a vacuum brazing furnace suitable for aluminum alloy and other low melting point workpieces. It can be used as vacuum furnace for low temperature sintering and heat treatment.


Alumina Base Vacuum Brazing Furnace Stainless Steel Chamber For Aluminum Alloy 0

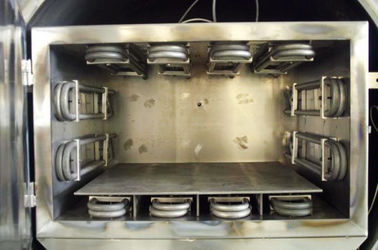

  • Stainless steel metal furnace and electric heating alloy tube heating, the highest temperature can reach 750 ℃.
  • Electrothermal alloy tube around heating, furnace temperature uniformity, up to plus or minus 5 degrees.

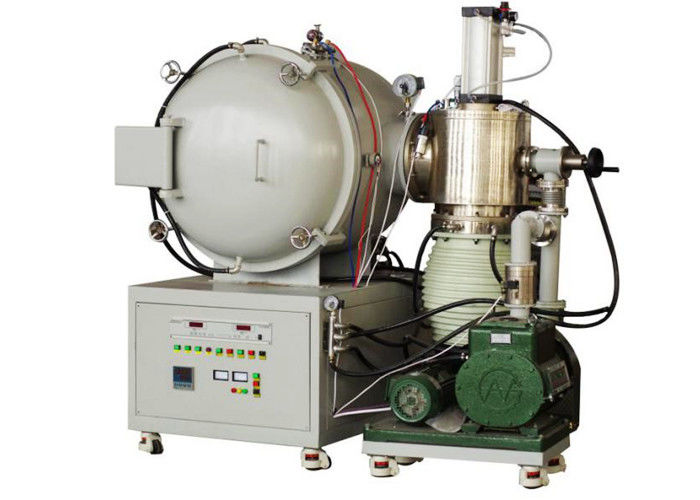

  • Clean stainless steel furnace, equipped with mechanical pump + diffusion pump vacuum unit, cold vacuum 10-3pa; Working vacuum is 10-2pa.
  • Compared with the vacuum furnace of molybdenum foil, this kind of electric furnace has low power, low price, economical use and is an ideal low temperature brazing equipment.



Optional accessories:

  • External quick cooling system; From brazing temperature to 180.
  • Less than an hour.
  • Stainless steel multi-layer rack, convenient for placing multi-layer brazing workpieces.
  • Low-temperature al-zinc-based flux.



Flux composition Color Melting temp.
AlSi12 Black 580℃
AlSiCu Black 480-550℃
Zn98Al Black 450℃
ZnSnCu Black 380℃



















Technical parameters:

Model Chamber size Temp. Power Voltage
BR-QHS-223 200*200*300mm 750℃ 3kW 380V
BR-QHS-334 300*300*400mm 750℃ 6kW 380V
BR-QHS-446 400*400*600mm 750℃ 12kW 380V
BR-QHS-557 500*500*700mm 750℃ 18kW 380V
BR-QHS-669 600*600*900mm 750℃ 28kW 380V
