Home ProductsControlled Atmosphere Furnace

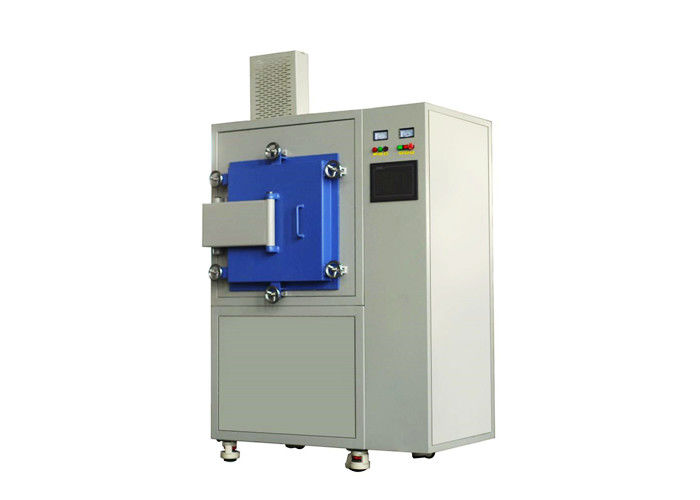

Programmable Controlled Atmosphere Furnace , Mo Wire Hydrogen Atmosphere Furnace

Programmable Controlled Atmosphere Furnace , Mo Wire Hydrogen Atmosphere Furnace

    • Programmable Controlled Atmosphere Furnace , Mo Wire Hydrogen Atmosphere Furnace
    • Programmable Controlled Atmosphere Furnace , Mo Wire Hydrogen Atmosphere Furnace
  • Programmable Controlled Atmosphere Furnace , Mo Wire Hydrogen Atmosphere Furnace

    Product Details:

    Place of Origin: China
    Brand Name: Brother Furnace
    Certification: CE
    Model Number: BR-16AH

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiation
    Packaging Details: Strong wooden box for global shipping
    Delivery Time: 7-30 Working days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 200 Sets per month
    Contact Now
    Detailed Product Description
    MAX TEMPERATURE: 1600℃ CAPACITY: 5 ~ 36L
    Positive Internal PRESSURE: 0.02Mpa Max. Negative Pressure: -0.1Mpa
    ATMOSPHERE: Hydrogen TEMPERATURE CONTROL: 50 Segments Programmable And PID Auto Control
    MAX. HEATING RATE: 20°C /min TEMPERATURE ACCURACY: ±1℃
    TEMPERATURE UNIFORMITY: ±5℃ Heating Element: High Purity Molybdenum Wire

    Hydrogen Atmosphere Furnace



    High Temperature Hydrogen Atmosphere Furnace, 1600℃ Hydrogen Gas Controlled Furnace



    Hydrogen atmosphere furnace is specially designed for sintering or annealing materials in hydrogen or inert gas environment. The highest temperature can reach to 1700℃. Alumina fiber is used as furnace chamber material and Mo wire is used as the heating element. The cooling water pipe is embedded in the sealing plate at the top of the furnace body to ensure the sealing performance during working. This electric furnace is suitable for materials (such as fluorescent materials, titanium alloys, etc.) that need to be sintered in the environment of inert gas or reducing
    atmosphere.

    Programmable Controlled Atmosphere Furnace , Mo Wire Hydrogen Atmosphere Furnace

    • The working temperature can be adjusted at 0 ℃ ~ 1600 ℃.
    • Heating element: High purity molybdenum wire (molybdenum content 99.99%)
    • Double-layer shell structure with air-cooling and water-cooling system to maintain the positive internal pressure of 0.02MP and negative pressure up to -0.1MP.
    • Build a pressure sensor and a pressure controller. According to the set pressure limit, control the inlet and outlet valves to protect the high and low pressure.
    • The furnace body is equipped with two large-flow flowmeters (N2: 0~3.5L / min, H2: 0~3.5L / min) float flowmeter, which can freely control the gas flow.
    • H2 safety device: H2 tail gas is automatically ignited and burned. The flame detector will automatically ignite when the flame is extinguished. The H2 is automatically cut off when the ignition fails and then filling N2 for security.









    Technical Parameter:

    Model Max. Temp. Chamber size Voltage Power
    BR-16AH2-5 1600℃ 150*150*200mm 220V 6kW
    BR-16AH2-12 1600℃ 200*200*300mm 220V 8kW
    BR-16AH2-36 1600℃ 300*300*400mm 380V 12kW



    Warning: You must ensure that a qualified hydrogen detector is installed to alert you to a hydrogen leak.
