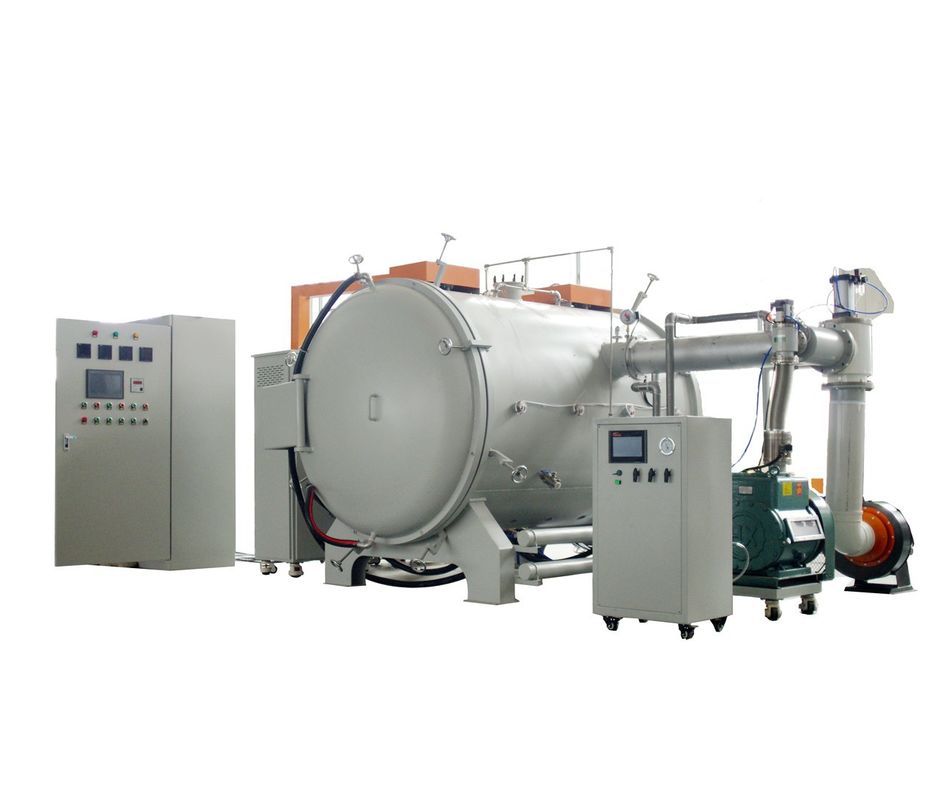

1700 Degree High Temperature Vacuum Furnace DPF Sintering Furnace

1700 Degree High Temperature Vacuum Furnace DPF Sintering Furnace

  • 1700 Degree High Temperature Vacuum Furnace DPF Sintering Furnace
1700 Degree High Temperature Vacuum Furnace DPF Sintering Furnace
Product Details:
Place of Origin: China
Brand Name: Brother Furnace
Certification: CE
Model Number: BR-DPF
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Strong wooden box for global shipping
Delivery Time: 7-30 Working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 Sets per month
Contact Now
Detailed Product Description
Vacuum: Up To 10 Pa (Two-stage Rotary Vane Vacuum Pump) Max. Temperature: 1700℃
Capacity: 1 ~ 324 L Inert Gas: Designed With Air Inlet And Exhaust Port, It Can Be Used For Vacuum Pumping Or Filling With Inert Gas
Vacuum Valve: Pneumatic Vacuum Valve, Easy To Operate Vacuum Leakage Rate: Helium Mass Spectrometer Leak Detector Vacuum Pickup, Ensure The Vacuum Leakage Rate Is Lower Than 0.67Pa/h.
Chamber: Alumina Ceramic Fiber Heating Element: Resistance Wire Or MoSi2 Heating Element
Cooling: Double Water-cooling, Furnace Shell Surface Temperature 50 ℃ Or Less Alarm: Upper Limit Alarm, Deviation Alarm, Automatic Stop At The End Of Program Operation, No Man On Duty
Control: 50 Programmable Temperature Meter PID Adjustment MAX. HEATING RATE: 20°C /min
TEMPERATURE ACCURACY: ±1℃ TEMPERATURE UNIFORMITY: ±5℃
High Light:

1700 Degree DPF Sintering Furnace

,

DPF High Temperature Vacuum Furnace

,

Programmable DPF Sintering Furnace

1700℃ Sintering Furnace for DPF (Diesel Particulate Filters)

This 1700℃ electric furnace is a perfect vacuum sintering furnace for Diesel Particulate Filters (DPF). Low price, simple operation, excellent vacuum effect, good temperature field uniformity.

DPF Sintering Furnace

GPF Sintering Furnace

DPF Sintering Furnace Features

  • Vacuum up to 10Pa.
  • The Max. temperature: 1700 ℃
  • Quality MoSi2 Heating Elements.
  • Pneumatic vacuum valve, easy to operate.
  • Use alumina ceramic fiber furnace and resistance wire or silicon molybdenum rod heating. At the same time, the cost of the electric furnace is greatly reduced.
  • Cooling system to make sure furnace shell surface temperature 50 ℃ or less.
  • High strength carbon steel, external electrostatic spray, beautiful and generous.
  • 50 programmable temperature meter PID adjustment.
  • Upper limit alarm, deviation alarm, automatic stop at the end of the program operation, no man on duty.



The Diesel Particulate Filters (DPF) products made by our vacuum furnace:

DPF-GPF



Vacuum Sintering Furnace for DPF (Diesel Particulate Filters) Technical Specifications

Technical Specifications

Chamber size
600x600x1500mm (Width * Height * Depth) Can Be Customized
Max. temperature
1700 C (<2hour)
Working temperature
1600 C
Temperature controlling
● PID automatic control via SCR (Silicon Controlled Rectifier) power control with phase angle fired, current limiting resistor.
● 51 programmable segments for precise control of heating rate, cooling rate, and dwell time.
● Built-in PID Auto-Tune function with overheating & broken thermocouple broken protection.
● Over-temperature protection and alarm allows for operation without an attendant.
Temperature accuracy
±1C
Temperature Uniformity
±5C over 120mm @ 1600C
±3C over 80mm @ 1600C
Heating rate
0-20C /min
Thermocouple
B type
Heating element
Quality Mosi2 Heating Elements
Vacuum
10 Pa
Furnace Chamber
3 layers of ceramic fiber insulation materials
Furnace structure
Double layer steel casing with dual cooling fan, surface temperature below 60C
Furnace door
● Front-side open
● Power cutting off when furnace door open
Working voltage
3800V, 50HZ/60HZ
Rated power
110 KW

Note: Other Chamber sizes can be customized.





Why Us?

Manufacturer with 10+ years' experience

  • Best quality
  • Customized design
  • Experienced workers
  • Big factory


Customers from more than 30 countries choose us

  • Satisfied customers offer proof of our commitment to excellent design, quality and cost efficiency.


Best service, Fast response

  • Free design for special furnace
  • Free technical support for the lifetime
  • Free sample test



If you're interested in our Industrial Diesel Particulate Filters DPF Sintering Furnace, contact us now to get a quote.
