Vacuum Lab CVD Tube Furnace, Rotary CVD Testing Machine 7 Inch HD Touch Screen

Vacuum Lab CVD Tube Furnace, Rotary CVD Testing Machine 7 Inch HD Touch Screen

  • Vacuum Lab CVD Tube Furnace, Rotary CVD Testing Machine 7 Inch HD Touch Screen
Vacuum Lab CVD Tube Furnace, Rotary CVD Testing Machine 7 Inch HD Touch Screen
Product Details:
Place of Origin: China
Brand Name: Brother Furnace
Certification: CE
Model Number: BR-NT/ST/MT / XD-NT/ST/MT
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Strong wooden box for global shipping
Delivery Time: 7-21 Working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 Sets per month
Contact Now
Detailed Product Description
Max Temperature: 1200℃ / 1400℃ / 1600℃ Normal Vacuum: -0.1MPa
Max Vacuum: Configuration Molecular Pump, Vacuum 7x10-4 Pa (Optional) Flange: 304 Stainless Steel Sealing Flange
Over-temperature Protection: Automatic Power-off When The Temperature Exceeds The Allowable Set Value Safety Protection: Automatically Power Off When The Furnace Body Leaks
Furnace Structure: Double Layer Steel Dual Cooling Fan, Surface Temperature Below 50℃ Max Heating Rate: 20°C /min
TEMPERATURE ACCURACY: ±1℃ TEMPERATURE UNIFORMITY: ±5℃
Temperature Control: 50 Segments Programmable And Auto Control Application: CVD Testing
High Light:

rotating tube furnace

,

quartz tube furnace

High Temperature Vacuum Lab CVD Tube Furnace, 1200℃ 1400℃ 1600℃ CVD Testing Machine







Brother's High Temperature Vacuum Lab CVD Tube Furnace, 1200℃ 1400℃ 1600℃ CVD Testing Machine, working temperature from 300℃ to 1600℃. Adopt advanced temperature control system, high temperature accuracy, easy operation, excellent heat-insulation effect, symmetrical temperature uniformity. Mainly used for labs of the university, research center, and production enterprise, etc.

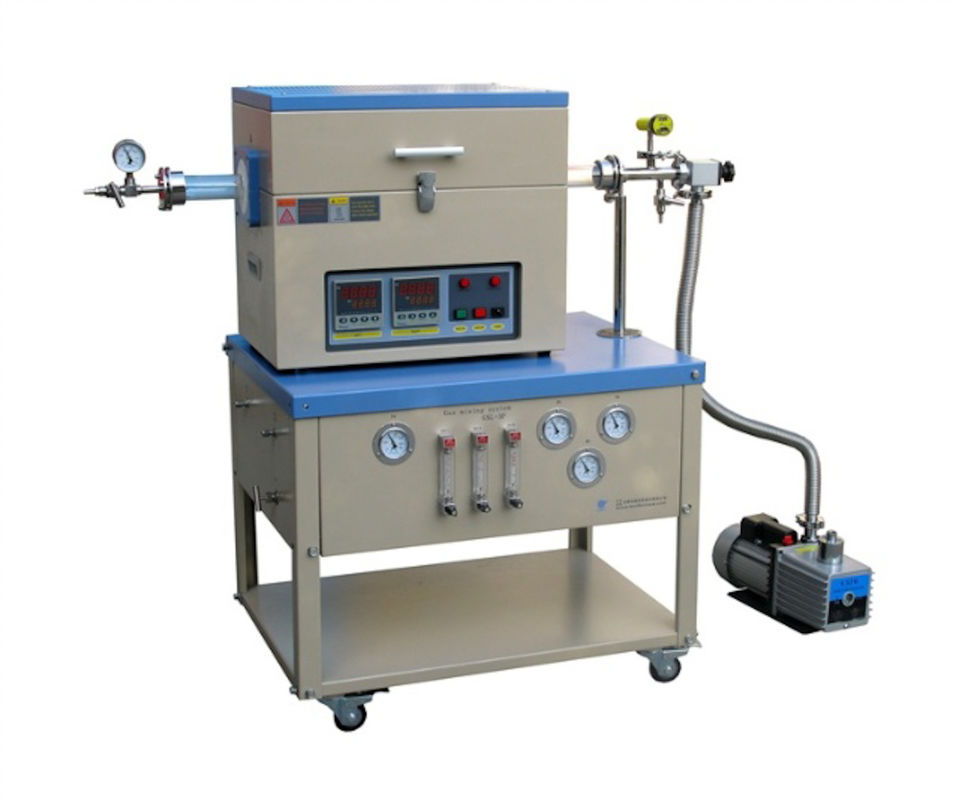

Vacuum Lab CVD Tube Furnace, Rotary CVD Testing Machine 7 Inch HD Touch Screen 0

  • Max temperature:
    1200℃ (HRE Fe-Cr-Al-Mo wire)
    1400℃ (SiC Heater)
    1600℃ (MoSi2 Heater)

  • 50 segments programmable and auto control
  • Furnace structure, double layer steel dual cooling fan, the surface temperature below 50℃
  • 304 stainless steel sealing flange
  • Adjustable flange support structure at both ends to extend furnace tube life
  • Over-temperature protection function, automatic power-off when the temperature exceeds the allowable set value
  • Safety protection Automatically power off when the furnace body leaks
  • Heating rate ≦20℃/min
  • Temperature accuracy ±1 ℃
  • Max vacuum -0.1MPa
  • Configuration molecular pump, Vacuum 7x10^(-4)Pa







Standard Spares:

  • Plugging tube 4 pcs
  • Furnace tube 1 pc
  • Vacuum pump 1 pc
  • Vacuum sealing flange 2 sets
  • Vacuum gauge 1 pc



Optional Spares:

  • Vacuum system (Rotary vane vacuum pump, Diffusion pump, Molecular pump)
  • Atmosphere system (Float flow meter, Mass flow meter)
  • Quick release flange, Three-way flange
  • 7 inch HD touch screen







High Temperature Vacuum Lab CVD Tube Furnace Standard specification:

Model Dia*Heating zone Power Max working temperature Thermocouple Furnace tube material Heating elements
BR-12NT-40/300 40x300mm 3 KW 1200℃ K type Quartz tube Fe-Cr-Al-Mo wire
BR-12NT-60/300 60x300mm 3 KW
BR-12NT-80/300 80x300mm 5 KW
BR-12NT-100/300 100x300mm 5 KW
BR-12NT-120/300 120x300mm 6 KW
BR-12NT-40/450 40x450mm 3 KW
BR-12NT-60/450 60x450mm 3 KW
BR-12NT-80/450 80x450mm 5 KW
BR-12NT-100/450 100x450mm 5 KW
BR-12NT-120/450 120x450mm 6 KW




Model

Dia*Heating zone Power Max working temperature Thermocouple Furnace tube material Heating elements
BR-14ST-40/300 40x300mm 4 KW 1400℃ S type Alumina tube Sic Heater
BR-14ST-60/300 60x300mm 4 KW
BR-14ST-80/300 80x300mm 4 KW
BR-14ST-100/300 100x300mm 6 KW
BR-14ST-120/300 120x300mm 6 KW
BR-14ST-40/450 40x450mm 4 KW
BR-14ST-60/450 60x450mm 4 KW
BR-14ST-80/450 80x450mm 4 KW
BR-14ST-100/450 100x450mm 6 KW
BR-14ST-120/450 120x450mm 6 KW




Model

Dia* Heating

zone

Power Max working temperature Thermocouple Furnace tube material Heating elements
BR-16MT-40/300 40x300mm 4 KW 1600℃ B type Alumina tube MoSi2 Heater
BR-16MT-60/300 60x300mm 4 KW
BR-16MT-80/300 80x300mm 4 KW
BR-16MT-100/300 100x300mm 6 KW
BR-16MT-120/300 120x300mm 6 KW
BR-16MT-40/450 40x450mm 5 KW
BR-16MT-60/450 60x450mm 5 KW
BR-16MT-80/450 80x450mm 5 KW
BR-16MT-100/450 100x450mm 7 KW
BR-16MT-120/450 120x450mm 7 KW















































































Why Brother's High Temperature Vacuum Lab CVD Tube Furnace?

Manufacturer with 10+ years' experience

  • Best quality
  • Customized design
  • Experienced workers
  • Big factory


Customers from more than 30 countries choose us

  • Satisfied customers offer proof of our commitment to excellent design, quality and cost efficiency.



Best service, Fast response

  • Free design for special furnace
  • Free technical support for the lifetime
  • Free sample test



If you're interserted in our High Temperature Vacuum Lab CVD Tube Furnace, 1200℃ 1400℃ 1600℃ CVD Testing Machine, contact us now to get a quota!
