1700 ℃ High Temperature Industrial Muffle Furnace 50 / 60 Hz Frequency CE Listed

1700 ℃ High Temperature Industrial Muffle Furnace 50 / 60 Hz Frequency CE Listed

  • 1700 ℃ High Temperature Industrial Muffle Furnace 50 / 60 Hz Frequency CE Listed
1700 ℃ High Temperature Industrial Muffle Furnace 50 / 60 Hz Frequency CE Listed
Product Details:
Place of Origin: China
Brand Name: Brother Furnace
Certification: CE
Model Number: BR-17M / XD-17M
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Strong wooden box for global shipping
Delivery Time: 7-21 Working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 Sets per month
Contact Now
Detailed Product Description
MAX WORKING TEMPERATURE: 1700℃ VOLUME: 1 ~ 1000L
HEATING ELEMENT: High Quality MoSi2 Heating Element Furnace Door: The Upper Door And The Side Door Can Be Customized To Keep The Operator Away From The Heat Source
TEMPERATURE CONTROL: 50 Segments Programmable And PID Auto Control ALARM: With Over Temperature Alarm Function
COOLING: Cooling Fan Can Reduce The Temperature Of The Casing VOTAGE: AC 110V Or AC 220V Or AC 380V 50/60 Hz
MAX. HEATING RATE: 20°C /min TEMPERATURE ACCURACY: ±1℃
TEMPERATURE UNIFORMITY: ±5℃ Application: Industrial Melting Under 1700°C
High Light:

industrial metal melting furnace

,

industrial chamber furnace

1700℃ High Temperature Industrial Annealing Muffle Furnace, 1700C Industrial Annealing Chamber Furnace







Brother's 1700℃ High Temperature Industrial Annealing Muffle Furnace, 1700C Industrial Annealing Chamber Furnace mainly used for production enterprises to do the high temperature annealing under 1700℃ .

Brother muffle furnace using polycrystalline mullite fiber lining, and the total thickness is 120-250mm, to ensure the very good thermal effect. Double layer of furnace shell with fan cooling, the surface temperature is less than 60℃. Strength structured furnace roof, to ensure long life to avoid any collapse from continuous working.

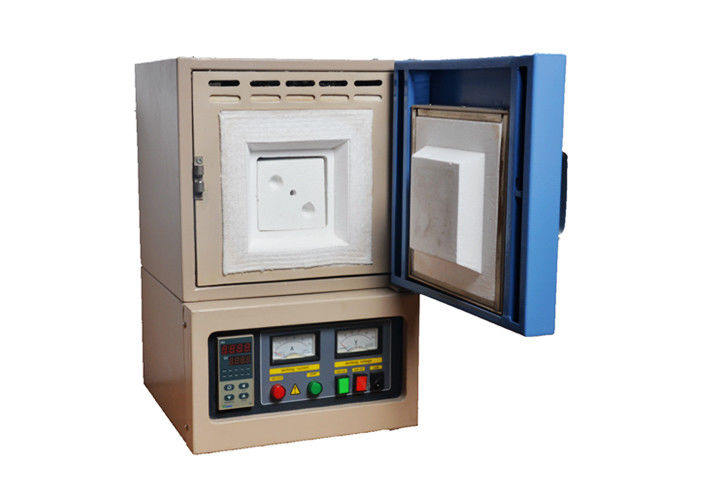

 1700 ℃ High Temperature Industrial Muffle Furnace 50 / 60 Hz Frequency CE Listed 0

This furnace is mainly used for universities, research institutes and production enterprises for the sintering, melting, analysis of metal, non-metal and other compound materials.

  • Max working temperature 1700℃
  • Volume: as per your order
  • High quality MoSi2 heating element.
  • The upper door and the side door can be customized to keep the operator away from the heat source.
  • 50 segments programmable and PID auto control
  • With over temperature alarm function


Standard Spares:

  • Fire brick
  • High temperature gloves
  • Crucible clip
  • Operation Manual
  • MoSi2 heating element 2pcs

Optional Spares:

  • 7-inch touch screen
  • Gas vent
  • Observation hole
  • Software
  • Furnace furniture as per your requirement.
  • Alumina crucible as per your requirement
  • Special design as per your requirement




1700℃ High Temperature Industrial Annealing Muffle Furnace Technical Parameter

Model

Max temperature

(°C)

Inner size

(W *H * D) mm

Volume

(L)

Power

(KW)

Phase Thermocouple
BR-17M-1 1700 100*100*100 1 1 1 B type
BR-17M-2 1700 120*120*130 2 3 1 B type
BR-17M-3 1700 150*150*150 3 4 1 B type
BR-17M-5 1700 150*150*200 5 5 1 B type
BR-17M-8 1700 200*200*200 8 7 1 B type
BR-17M-12 1700 200*200*300 12 8 1 B type
BR-17M-27 1700 300*300*300 27 10 3 B type
BR-17M-36 1700 300*300*400 36 12 3 B type
BR-17M-64 1700 400*400*400 64 20 3 B type
BR-17M-125 1700 500*500*500 125 30 3 B type
BR-17M-216 1700 600*600*600 216 45 3 B type
BR-17M-512 1700 800*800*800 512 80 3 B type
BR-17M-729 1700 900*900*900 729 96 3 B type
BR-17M-1000 1700 1000*1000*1000 1000 120 3 B type
Chamber size can be customized





Why Brother's 1700℃ High Temperature Industrial Annealing Chamber Furnace?

Manufacturer with 10+ years' experience

  • Best quality
  • Customized design
  • Experienced workers
  • Big factory


Customers from more than 30 countries choose us

  • Satisfied customers offer proof of our commitment to excellent design, quality and cost efficiency.


Best service, Fast response

  • Free design for special furnace
  • Free technical support for the lifetime
  • Free sample test


If you're interested in our 1700℃ High Temperature Industrial Annealing Muffle Furnace, 1700C Industrial Annealing Chamber Furnace, contact us now to get a quote!
