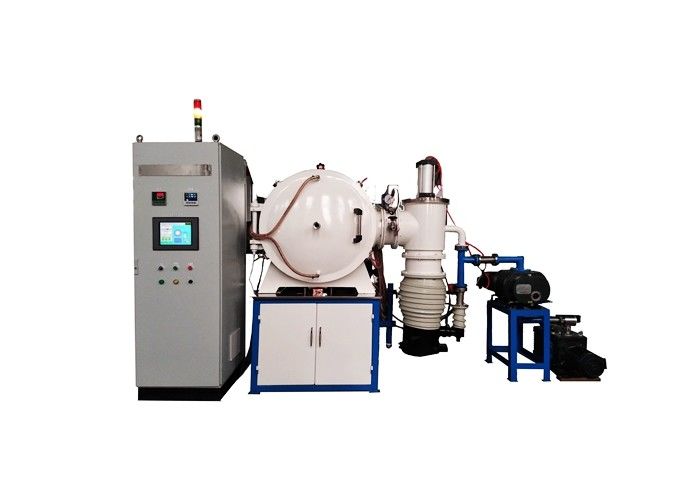

Graphite Ultra High Temperature Vacuum Furnace Horizontal Type 12 - 324L Capacity

Graphite Ultra High Temperature Vacuum Furnace Horizontal Type 12 - 324L Capacity

  • Graphite Ultra High Temperature Vacuum Furnace Horizontal Type 12 - 324L Capacity
Graphite Ultra High Temperature Vacuum Furnace Horizontal Type 12 - 324L Capacity
Product Details:
Place of Origin: China
Brand Name: Brother Furnace
Certification: CE
Model Number: BR-GHM
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Strong wooden box for global shipping
Delivery Time: 30-50 Working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 Sets per month
Contact Now
Detailed Product Description
Max. VACUUM: 0.0667Pa MAX. TEMPERATURE: 2400℃
Capacity: 12 ~ 324L FURNACE CHAMBER: Graphite Felt
HEATING ELEMENT: Graphite OBSERVATION HOLE: Yes
CONTROL: PLC THERMOCOUPLE: W-Re Thermocouple
MAX. HEATING RATE: 20°C /min TEMPERATURE ACCURACY: ±1℃
TEMPERATURE UNIFORMITY: ±5℃
High Light:

vacuum heat treatment furnace

,

electric heat treatment furnace

Graphite Vacuum Furnace Horizontal Type

Ultra High Temperature Graphite Vacuum Furnace Up to 2400℃ Horizontal Type





The ultra-temperature graphite furnace is a performance intelligent heating furnace, adopt advanced temperature measurement, temperature control, intelligence, new material, and furnace chamber design. This furnace is mainly used for high temperature treatment of materials in vacuum or protective atmosphere environment.



  • Graphite heating element, max. Temperature can be 2400℃.
  • Insulation furnace chamber adopts import graphite soft felt and hard felt.
  • Furnace shell inner layer is stainless steel, the outer layer is carbon steel, double layers water-cooling structure.
  • Furnace door adopt front open and back open, easy to load and unload material.
  • Furnace shell has an observation hole, can see the heating situation in the chamber.
  • Adopt a W-Re thermocouple and infrared thermometer to measure temperature, thermocouple goes in and out automatically.

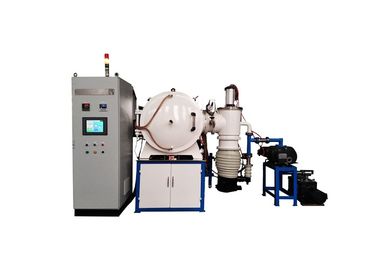

Graphite Ultra High Temperature Vacuum Furnace Horizontal Type 12 - 324L Capacity 0



Technical Parameters

Model Heating Zone Temperature Power Voltage
BR-GHM-223 200*200*300mm 2200℃ 45kW 380V
BR-GHM-334 300*300*400mm 2200℃ 60kW 380V
BR-GHM-446 400*400*600mm 2200℃ 90kW 380V
BR-GHM-557 500*500*700mm 2200℃ 150kW 380V
BR-GHM-669 600*600*900mm 2200℃ 180kW 380V
